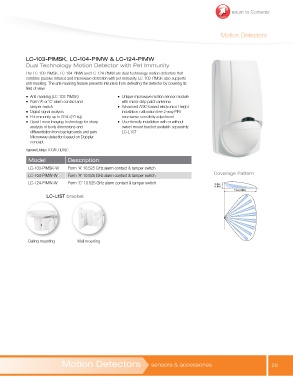

Page 33 - Catalog DSC 2014

103-PIMSK, LC-104-PIMW & LC-124-PIMW return to Contents
Dual Technology Motion Detector with Pet Immunity
Motion Detectors
The LC-103-PIMSK, LC-104-PIMW and LC-124-PIMW are dual-technology motion detectors that
combine passive infrared and microwave detection with pet immunity. LC-103-PIMSK also supports Coverage Pattern
anti-masking. The anti-masking feature prevents intruders from defeating the detector by covering its
field of view.

•• Anti-masking (LC-103-PIMSK) • Unique microwave motion sensor module
Form ‘A’ or ‘C’ alarm contact and • with micro-strip patch antenna
Advanced ASIC-based electronics
• •• tamper switch Height
Digital signal analysis
Pet immunity up to 55 lb (25 kg) installation calibration free 2-way PIR/
Quad Linear Imaging Technology
for sharp • microwave sensitivity adjustment
User-friendly installation with or without

analysis of body dimensions and swivel-mount bracket available separately:

differentiation from backgrounds and pets LC-L1ST

Microwave detection based on Doppler

concept

Approval Listings: FCC/IC, UL/ULC

Model Description

LC-103-PIMSK-W Form ‘A’ 10.525 GHz alarm contact & tamper switch
LC-104-PIMW-W Form ‘A’ 10.525 GHz alarm contact & tamper switch
LC-124-PIMW-W Form ‘C’ 10.525 GHz alarm contact & tamper switch

LC-L1ST bracket

Ceiling mounting Wall mounting
