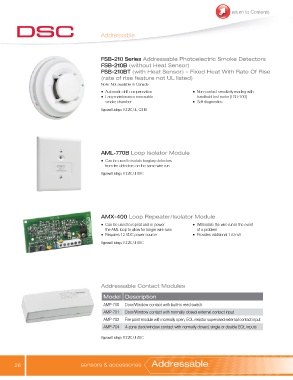

Page 30 - Catalog DSC 2014

return to Contents

Addressable

FSB-210 Series Addressable Photoelectric Smoke Detectors

FSB-210B (without Heat Sensor)

FSB-210BT (with Heat Sensor) – Fixed Heat With Rate Of Rise

(rate of rise feature not UL listed)

Note: Not available in Canada

•• Automatic drift compensation • Non-contact sensitivity reading with
Easy-maintenance removable • handheld test meter (FSD-100)
Self diagnostics
smoke chamber

Approval Listings: FCC/IC, UL, CSFM

AML-770B Loop Isolator Module
• Can be used to isolate burglary detectors

from fire detectors on the same wire run

Approval Listings: FCC/IC, UL/ULC

AMX-400 Loop Repeater/Isolator Module

• Can be used to repeat and re-power • Will isolate the wire run in the event
• the AML loop to allow for longer wire runs • of a problem
Requires 12 VDC power source Provides additional
170 mA

Approval Listings: FCC/IC, UL/ULC

Addressable Contact Modules

Model Description

AMP-700 Door/Window contact with built-in reed switch
AMP-701 Door/Window contact with normally closed external contact input
AMP-702 Fire point module with normally open, EOL resistor supervised external contact input
AMP-704 4-zone door/window contact with normally closed, single or double EOL inputs

Approval Listings: FCC/IC, UL/ULC

26 sensors & accessories Addressable
