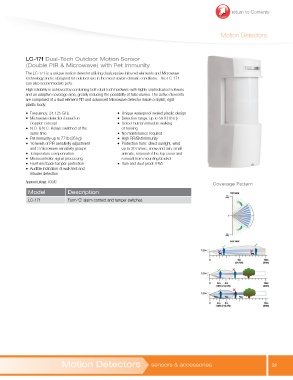

171 Dual-Tech Outdoor Motion Sensor return to Contents
(Double PIR & Microwave) with Pet Immunity
Motion Detectors
The LC-171 is a unique motion detector utilizing dual passive infra-red elements and Microwave
technology and is designed for outdoor use in the most severe climatic conditions. The LC-171 Coverage Pattern
can also accommodate pets.
High reliability is achieved by combining both dual tech hardware with highly sophisticated software
and an adaptive coverage area, greatly reducing the possibility of false alarms. The active elements
are comprised of a dual element PIR and advanced Microwave detector inside a stylish, rigid
plastic body.
•• Frequency: 24.125 GHz on ••• Unique waterproof sealed plastic design
Microwave detection based Detection range: up to 59 ft (18 m)
Detect human intruders walking
• Doppler concept
N.O. & N.C. Relays switched at the •• • or running
No maintenance required
•• same time High RFI/EMI immunity wind
Pet immunity up to 77 lb (35 kg) Protection from: direct sunlight,
16 levels of PIR sensitivity adjustment
•••• and 3 microwave sensitivity groups up to 30 m/sec, snow and rain, small
Temperature compensation
Microcontroller signal processing animals, removal of the top cover and
Front and back tamper protection
Audible indication of walk test and • removal from mounting bracket
Rain and dust proof: IP65
intruder detection
Approval Listings: FCC/IC
Model Description
LC-171 Form ‘C’ alarm contact and tamper switches
