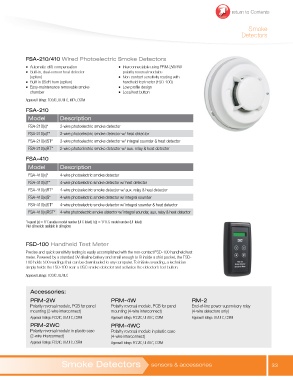

Page 37 - Catalog DSC 2014

return to Contents

Smoke
Detectors

FSA-210/410 Wired Photoelectric Smoke Detectors

•• Automatic drift compensation • Interconnectable using PRM-2W/4W
Built-in, dual-sensor heat detector • polarity reversal modules
Non-contact sensitivity reading
•• BE(oaupsilttyi-o-innm)8a5indteBnahnocrne(roepmtioonva) ble smoke with

•• handheld test meter (FSD-100)
Low profile design
chamber Local test button

Approval Listings: FCC/IC, UL/ULC, MEA, CSFM

FSA-210 Description
Model
2-wire photoelectric smoke detector
FSA-210(x)* 2-wire photoelectric smoke detector w/ heat detector
FSA-210(x)T* 2-wire photoelectric smoke detector w/ integral sounder & heat detector
FSA-210(x)ST* 2-wire photoelectric smoke detector w/ aux. relay & heat detector
FSA-210(x)RT*

FSA-410 Description
Model
4-wire photoelectric smoke detector
FSA-410(x)* 4-wire photoelectric smoke detector w/ heat detector
FSA-410(x)T* 4-wire photoelectric smoke detector w/ aux. relay & heat detector
FSA-410(x)RT* 4-wire photoelectric smoke detector w/ integral sounder
FSA-410(x)S* 4-wire photoelectric smoke detector w/ integral sounder & heat detector
FSA-410(x)ST* 4-wire photoelectric smoke detector w/ integral sounder, aux. relay & heat detector
FSA-410(x)RST*

*Legend (x) = ‘A’ Canadian model number (ULC listed) | (x) = ‘B’ U.S. model number (UL listed)
Not all models available in all regions

FSD-100 Handheld Test Meter

Precise and quick sensitivity testing is easily accomplished with the non-contact FSD-100 handheld test
meter. Powered by a standard 9V alkaline battery and small enough to fit inside a shirt pocket, the FSD-
100 holds 500 readings that can be downloaded to any computer. To initiate a reading, a technician
simply holds the FSD-100 near a DSC smoke detector and activates the detector’s test button.

Approval Listings: FCC/IC, UL/ULC

Accessories: PRM-4W RM-2

PRM-2W Polarity reversal module, PCB for panel End-of-line power supervisory relay
mounting (4-wire interconnect) (4-wire detectors only)
Polarity reversal module, PCB for panel Approval Listings: FCC/IC, UL/ULC, CSFM
mounting (2-wire interconnect) Approval Listings: UL/ULC, CSFM
Approval Listings: FCC/IC, UL/ULC, CSFM PRM-4WC

PRM-2WC Polarity reversal module in plastic case
(4-wire interconnect)
Polarity reversal module in plastic case Approval Listings: FCC/IC, UL/ULC, CSFM
(2-wire interconnect)
Approval Listings: FCC/IC, UL/ULC, CSFM

Smoke Detectors sensors & accessories 33
