Page 13 - Q SERIES WISENET
P. 13

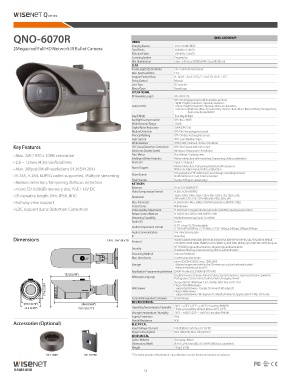

-6070R QNO-6070RN/P
2Megapixel Full HD Network IR Bullet Camera VIDEO
Imaging Device 1/2.9" 2.19M CMOS
Total Pixels 2,000(H) x 1,121(V)
Effective Pixels 1,984(H) x 1,105(V)
Scanning System Progressive
Min. Illumination Color : 0.095Lux (30IRE), B/W : 0Lux (IR LED on)
LENS
Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) manual
Max. Aperture Ratio F1.4
Angular Field of View H : 103.8˚ ~ 32.4˚ / V 53.7˚ ~ 18.4˚ / D 121.9˚ ~ 37.1˚
Focus Control Manual
Lens Type DC auto iris
Mount Type Board type
OPERATIONAL
IR Viewable Length 30m (98.43ft)
Camera Title Off / On (Displayed up to 20 characters per line)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : M ulti-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency,
Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
Key Features White Balance ATW / AWC / Manual / Indoor / Outdoor
• Max. 2M (1920 x 1080) resolution LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
• 2.8 ~ 12mm (4.3x) varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264) Electronic Shutter Speed Minimum / Maximum / Anti flicker
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection Flip / Mirror Flip / Mirror / Hallway view
• micro SD (128GB) memory slot, PoE / 12V DC
• IR viewable length 30m, IP66, IK10 Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus deteciton
• Hallway view support
• LDC support (Lens Distortion Correction) Alarm I/O Input 1 / Output 1
Alarm Triggers Motion detection, Tampering detection, SD card error,
NAS error, Alarm input, Defocus detection
Alarm Events File upload via FTP and E-mail, Local storage recording at event,
Notification via E-mail, External output
Pixel Counter Support (Plug-in viewer only)
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265, H.264, MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240
Max. Framerate H.265/H.264 : Max. 30fps at 2M all resolutions, MJPEG : 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Line in
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
Dimensions IP IPv4, IPv6
Unit : mm (inch) Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE,
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
Storage micro SD/SDHC/SDXC max. 128G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
115522..00 ((55..9988")") Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
7777..66 ((33..0066")") Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
Plug-in Webviewer
- Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer
ØØ7700..00 ((22..7766"")) 24264.06(.09.6(99."6) 9") ENVIRONMENTAL
7755.2.2((22..9966"")) 225599..33((1100.2.21"1) ")
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Accessories (Optional) * Start up should be done at above -20°C (-4°F)
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption Max. 8W (PoE), Max. 7W (12V DC)
MECHANICAL
Color / Material Dark gray / Metal
Dimensions (WxH) Ø70.0 x 246.0mm (Ø2.76" x 9.69") (Without sunshield)
Weight 730g (1.61 lb)
SBO-100B1 SBP-302PM * The latest product information / specification can be found at hanwha-security.eu
