P. 17

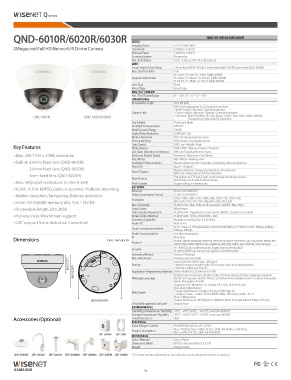

-6010R/6020R/6030R QND-6010R/6020R/6030R
2Megapixel Full HD Network IR Dome Camera VIDEO
Imaging Device 1/2.9" 2.19M CMOS
Total Pixels 2,000(H) x 1,121(V)
Effective Pixels 1,984(H) x 1,105(V)
Scanning System Progressive
Min. Illumination Color : 0.15Lux, B/W : 0Lux (IR LED on)
LENS
Focal Length (Zoom Ratio) 2.8mm fixed (QND-6010R), 3.6mm fixed (QND-6020R), 6mm fixed (QND-6030R)
Max. Aperture Ratio F1.8
H : 110.0˚ / V : 61.0˚ / D : 125.0˚ (QND-6010R)
Angular Field of View H : 86.48˚ / V : 46.22˚ / D : 102.44˚ (QND-6020R)
H : 52.54˚ / V : 28.86˚ / D : 61.14˚ (QND-6030R)
Lens Type Fixed
Mount Type Board type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IR Viewable Length 20m (65.62ft)
Off / On (Displayed up to 20 characters per line)
Camera Title - W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
QND-6010R QND-6020R/6030R - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
Key Features White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
• Max. 2M (1920 x 1080) resolution Electronic Shutter Speed Minimum / Maximum / Anti flicker
• Built-in 2 .8mm fixed lens (QND-6010R) Flip / Mirror Flip / Mirror / Hallway view
Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus detection
3.6mm fixed lens (QND-6020R) Alarm I/O Input 1 / Output 1
6mm fixed lens (QND-6030R) Motion detection, Tampering detection, SD card error,
• Max. 30fps@all resolutions (H.265/H.264) Alarm Triggers NAS error, Alarm input, Defocus detection
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection Alarm Events File upload via FTP and E-mail, Local storage recording at event,
• micro SD (128GB) memory slot, PoE / 12V DC Notification via E-mail, External output
• IR viewable length 20m, IK08 Pixel Counter Support (Plug-in viewer only)
• Hallway view, WiseStream support NETWORK
• LDC support (Lens Distortion Correction) Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265, H.264, MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
Resolution 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240
Max. Framerate H.265/H.264 : Max. 30fps at all resolutions, MJPEG : Max. 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Built-in mic
G.711 u-law / G.726 selectable G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps,
Audio Compression Format 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
Dimensions Unit : mm (inch) TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
4455..00 ((11..777"7)") micro SD/SDHC/SDXC Max. 128G, NAS
886.6.00((33..3399")") Storage - Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Webpage Language Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian,
Greek, Norwegian, Finnish
Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Web Viewer Non-plugin Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
Ø1Ø1100..00 (4..3333")") - Support Codec : - Video : H.264, MJPEG (Max. 1M 15fps) - Audio : G.711
SBP-300NB SBP-300B Plug-in Webviewer
Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Accessories (Optional) Vandal Resistance IK08
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Max. 7W (PoE), Max. 5.8W (12V DC) : QND-6010R Max. 6.5W (PoE),
Power Consumption Max. 5.43W (12V DC) : QND-6020R/6030R
MECHANICAL Ivory / Plastic
Color / Material
Dimensions (WxH) Ø110.0 x 86.0mm (Ø4.33" x 3.39")
Weight 290g (0.64 lb)
SBP-300HM7 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300PM SBP-300KM * The latest product information / specification can be found at hanwha-security.eu
