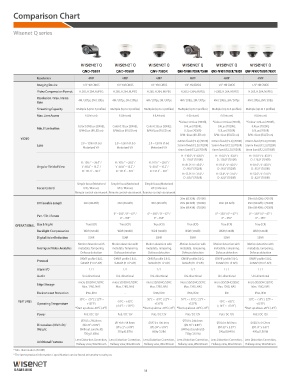

parison Chart
Wisenet Q series
QNO-7080R QND-7080R QNV-7080R QNO-7010R/7020R/7030R QND-7010R/7020R/7030R QNV-7010R/7020R/7030R
Resolution 4MP 4MP 4MP 4MP 4MP 4MP
Imaging Device 1/3" 4M CMOS 1/3" 4M CMOS 1/3" 4M CMOS 1/3" 4M CMOS 1/3" 4M CMOS 1/3" 4M CMOS
Video Compression Format H.265, H.264, MJPEG H.265, H.264, MJPEG H.265, H.264, MJPEG H.265, H.264, MJPEG H.265, H.264, MJPEG H.265, H.264, MJPEG
Resolution / Max. Frame 4M / 20fps, 2M / 30fps 4M / 20fps, 2M / 30fps 4M / 20fps, 2M / 30fps 4M / 20fps, 2M / 30fps 4M / 20fps, 2M / 30fps 4M / 20fps, 2M / 30fps
Rate
Streaming Capacity Multiple (Up to 3 profiles) Multiple (Up to 3 profiles) Multiple (Up to 3 profiles) Multiple (Up to 3 profiles) Multiple (Up to 3 profiles) Multiple (Up to 3 profiles)
Max. User Access 6 (Unicast) 6 (Unicast) 6 (Unicast) 6 (Unicast) 6 (Unicast) 6 (Unicast)
Min. Illumination Color:0.095Lux (30IRE), Color:0.15Lux (30IRE), Color:0.15Lux (30IRE), *Colour : 0.5Lux (7010R), *Colour : 0.5Lux (7010R), *Colour : 0.5Lux (7010R),
Lens B/W:0Lux (IR LED on) B/W:0Lux (IR LED on) B/W:0Lux (IR LED on) 0.4Lux (7020R), 0.4Lux (7020R), 0.4Lux (7020R),
0.3Lux (7030R) 0.3Lux (7030R) 0.3Lux (7030R)
VIDEO 2.8 ~ 12mm (4.3x)
Motorized V/F B/W : 0Lux (IR LED on) B/W : 0Lux (IR LED on) B/W : 0Lux (IR LED on)
2.8 ~ 12mm (4.3x) 2.8 ~ 12mm (4.3x) 2.8mm fixed (F2.2) (7010R) 2.8mm fixed (F2.2) (7010R) 2.8mm fixed (F2.2) (7010R)
Motorized V/F Motorized V/F 3.6mm fixed (F2.2) (7020R) 3.6mm fixed (F2.2) (7020R) 3.6mm fixed (F2.2) (7020R)
6mm fixed (F2.2) (7030R) 6mm fixed (F2.2) (7030R) 6mm fixed (F2.2) (7030R)
Angular Field of View H : 109.7˚ ~ 26.0˚ / H : 109.7˚ ~ 26.0˚ / H : 109.7˚ ~ 26.0˚ / H : 110.0° / V : 63.0° / H : 110.0° / V : 63.0° / H : 110.0° / V : 63.0° /
V : 60.8˚ ~ 15.2˚ / V : 60.8˚ ~ 15.2˚ / V : 60.8˚ ~ 15.2˚ / D : 128.0° (7010R) D : 128.0° (7010R) D : 128.0° (7010R)
D : 131.3˚ ~ 30.1˚ D : 131.3˚ ~ 30.1˚ D : 131.3˚ ~ 30.1˚
H : 81.0° / V : 45.0° / H : 81.0° / V : 45.0° / H : 81.0° / V : 45.0° /
D : 95.0° (7020R) D : 95.0° (7020R) D : 95.0° (7020R)
H : 53.0° / V : 31.0° / H : 53.0° / V : 31.0° / H : 53.0° / V : 31.0° /
D : 62.0° (7030R) D : 62.0° (7030R) D : 62.0° (7030R)
Simple focus (Motorized Simple focus (Motorized Simple focus (Motorized
Focus Control V/F) / Manual, V/F) / Manual, V/F) / Manual, - - -
Remote control via network Remote control via network Remote control via network
IR Viewable Length 30m (98.43ft) 20m (65.62ft) 30m (98.43ft) 20m (65.62ft) : (7010R) 20m (65.62ft) 20m (65.62ft) : (7010R)
25m (82.02ft) : (7020R) 25m (82.02ft) : (7020R)
30m (98.43ft) : (7030R) 30m (98.43ft) : (7030R)
Pan / Tilt / Rotate - 0° ~ 350° / 0° ~ 67° / 0° ~ 350° / 0° ~ 67° / - 0° ~ 350° / 0° ~ 67° / 0° ~ 350° / 0° ~ 67° /
0° ~ 355° 0° ~ 355° 0° ~ 355° 0° ~ 355°
OPERATIONAL Day & Night True (ICR) True (ICR) True (ICR) True (ICR) True (ICR) True (ICR)
Backlight Compensation WDR (120dB) WDR (120dB) WDR (120dB) WDR (120dB) WDR (120dB) WDR (120dB)
Digital Noise Reduction SSNR SSNR SSNR SSNR SSNR SSNR
Intelligent Video Analytics Motion detection with Motion detection with Motion detection with Motion detection with Motion detection with Motion detection with
metadata, Tampering, metadata, Tampering, metadata, Tampering, metadata, Tampering, metadata, Tampering, metadata, Tampering,
Defocus detection Defocus detection Defocus detection Defocus detection Defocus detection Defocus detection
Protocol ONVIF profile S & G, ONVIF profile S & G, ONVIF profile S & G, ONVIF profile S & G, ONVIF profile S & G, ONVIF profile S & G,
SUNAPI (HTTP API) SUNAPI (HTTP API) SUNAPI (HTTP API) SUNAPI (HTTP API) SUNAPI (HTTP API) SUNAPI (HTTP API)
Alarm I/O 1/1 1/1 1/1 1/1 1/1 1/1
Audio Uni-directional Uni-directional Uni-directional Uni-directional Uni-directional Uni-directional
Edge Storage micro SD/SDHC/SDXC micro SD/SDHC/SDXC micro SD/SDHC/SDXC micro SD/SDHC/SDXC micro SD/SDHC/SDXC micro SD/SDHC/SDXC
Max. 128G, NAS Max. 128G, NAS Max. 128G, NAS Max. 128G, NAS Max. 128G, NAS Max. 128G, NAS
Environment Protection IP66, IK10 - IP66, IK10 IP66, IK10 IK8 IP66, IK10
FEATURES Operating Temperature -30°C ~ +55°C (-22°F ~ -10°C ~ +55°C -30°C ~ +55°C (-22°F ~ -30°C ~ +55°C (-22°F ~ -10°C ~ +55°C -30°C ~ +55°C (-22°F ~
+131°F) (+14°F ~ +131°F) (+14°F ~ +131°F) +131°F)
+131°F) +131°F)
*Start up above -20°C (-4°F) *Start up above -20°C (-4°F)
*Start up above -20°C (-4°F) *Start up above -20°C (-4°F)
Power PoE / DC 12V PoE / DC 12V PoE / DC 12V PoE / DC 12V PoE / DC 12V PoE / DC 12V
Dimensions (WxHxD) / Ø70.0 x 246.0mm Ø119.8 x 98.8mm Ø137.0 x 106.1mm Ø70.0 x 246.0mm Ø110.0 x 86.0mm Ø120.3 x 91.7mm
Weight (Ø2.76" x 9.69") (Ø4.72" x 3.89") (Ø5.39" x 4.18") (Ø2.76" x 9.69") (Ø4.33" x 3.39") (Ø4.74" x 3.61")
(Without sunshield) 355g (0.87lb) 680g (1.5lb) (Without sunshield) 290g (0.64 lb) 490g (1.08 lb)
750g (1.65lb) 730g (1.61 lb)
Additional Features Lens Distortion Correction, Lens Distortion Correction, Lens Distortion Correction, Lens Distortion Correction, Lens Distortion Correction, Lens Distortion Correction,
Hallway view, WiseStream Hallway view, WiseStream Hallway view, WiseStream Hallway view, WiseStream Hallway view, WiseStream Hallway view, WiseStream
* Min. Illumination (50 IRE)
* The latest product information / specification can be found at hanwha-security.eu
