Page 16 - Q SERIES WISENET
P. 16

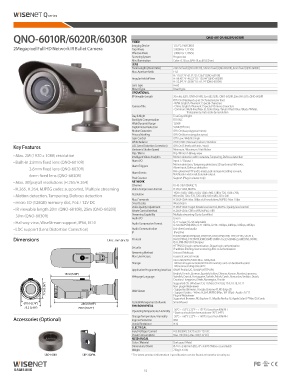

-6010R/6020R/6030R QNO-6010R/6020R/6030R
2Megapixel Full HD Network IR Bullet Camera VIDEO 1/2.9”2.19M CMOS
Imaging Device
Total Pixels 2,000(H) x 1,121(V)
Effective Pixels 1,984(H) x 1,105(V)
Scanning System Progressive
Min. Illumination Color : 0.15Lux, B/W : 0Lux (IR LED on)
LENS
Focal Length (Zoom Ratio) 2.8mm fixed (QNO-6010R), 3.6mm fixed (QNO-6020R), 6mm fixed (QNO-6030R)
Max. Aperture Ratio F1.8
H : 110.0˚ /V : 61.0˚ / D : 125.0˚ (QNO-6010R)
Angular Field ofView H : 86.48˚ /V : 46.22˚ / D : 102.44˚ (QNO-6020R)
H : 52.54˚ /V : 28.86˚ / D : 61.14˚ (QNO-6030R)
Lens Type Fixed
Mount Type Board type
OPERATIONAL
IRViewable Length 20m (65.62ft) : QNO-6010R, 25m (82.02ft) : QNO-6020R, 30m (98.43ft) : QNO-6030R
Off / On (Displayed up to 20 characters per line)
Camera Title -W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
Day & Night - Common : M ulti-line (Max. 5), Color (Grey / Green / Red / Blue / Black /White),
Transparency, Auto scale by resolution
True Day & Night
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Key Features Electronic Shutter Speed Minimum / Maximum / Anti flicker
Flip / Mirror Flip / Mirror / Hallway view
• Max. 2M (1920 x 1080) resolution IntelligentVideo Analytics Motion detection with metadata,Tampering, Defocus detection
• Built-in 2 .8mm fixed lens (QNO-6010R) Alarm I/O Input 1 / Output 1
Motion detection,Tampering detection, SD card error, NAS error,
3.6mm fixed lens (QNO-6020R) Alarm Triggers Alarm input, Defocus detection
6mm fixed lens (QNO-6030R)
• Max. 30fps@all resolutions (H.265/H.264) Alarm Events File upload via FTP and E-mail, Local storage recording at event,
• H.265, H.264, MJPEG codec supported, Multiple streaming Notification via E-mail, External output
• Motion detection, Tampering, Defocus detection Pixel Counter Support (Plug-in viewer only)
• micro SD (128GB) memory slot, PoE / 12V DC NETWORK
• IR viewable length 20m (QNO-6010R), 25m (QNO-6020R) Ethernet RJ-45 (10/100BASE-T)
30m (QNO-6030R) Video Compression Format H.265, H.264, MJPEG
• Hallway view, WiseStream support, IP66, IK10 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• LDC support (Lens Distortion Correction) Resolution 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240
Max. Framerate H.265/H.264 : Max. 30fps at all resolutions, MJPEG : Max. 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 :Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR orVBR, MJPEG :VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Line in
G.711 u-law / G.726 selectable
Audio Compression Format G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS,
Dimensions Unit : mm (inch) Protocol DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS,
QoS, PIM-SM, UPnP, Bonjour
HTTPS(SSL) login authentication, Digest login authentication
Security IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
micro SD/SDHC/SDXC Max. 128G, NAS
Storage - Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
115522..00 ((55..9988")") Webpage Language Swedish, Danish, Portuguese,Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Supported OS :Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
7777..66 ((33..0066")") Web Viewer Non-plugin Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
Central Management Software - Support Codec : -Video : H.264, MJPEG (Max. 1M 15fps) - Audio : G.711
ENVIRONMENTAL Plug-in Webviewer
Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
SmartViewer
ØØ7700..00 ((22..7766"")) 24264.06(.09.6(99."6) 9")
7755.2.2((22..9966"")) 225599..33((1100.2.21"1) ") OperatingTemperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°C (-4°F)
Accessories (Optional) StorageTemperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
ELECTRICAL
InputVoltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption Max. 7W (PoE), Max. 6W (12V DC)
MECHANICAL
Color / Material Dark gray / Metal
Dimensions (WxH) Ø70.0 x 246.0mm (Ø2.76”x 9.69”) (Without sunshield)
Weight 730g (1.61 lb)
SBO-100B1 SBP-302PM * The latest product information / specification can be found at hanwha-security.eu
