Page 11 - Q SERIES WISENET

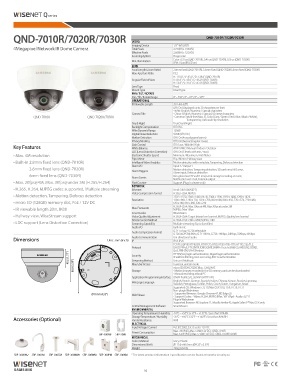

P. 11
-7010R/7020R/7030R QND-7010R/7020R/7030R
4Megapixel Network IR Dome Camera VIDEO 1/3”4M CMOS
Imaging Device
Total Pixels 2,720(H) x 1,536(V)
Effective Pixels 2,688(H) x 1,520(V)
Scanning System Progressive
Color : 0.5Lux (QND-7010R), 0.4Lux (QND-7020R), 0.3Lux (QND-7030R)
Min. Illumination B/W : 0Lux (IR LED on)
LENS 2.8mm fixed (QND-7010R), 3.6mm fixed (QND-7020R), 6mm fixed (QND-7030R)
Focal Length (Zoom Ratio)
Max. Aperture Ratio F2.2
H : 110.0˚ /V : 63.0˚ / D : 128.0˚ (QND-7010R)
Angular Field ofView H : 81.0˚ /V : 45.0˚ / D : 95.0˚ (QND-7020R)
H : 53.0˚ /V : 31.0˚ / D : 62.0˚ (QND-7030R)
Lens Type Fixed
Mount Type Board type
PAN /TILT / ROTATE
Pan /Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IRViewable Length 20m (65.62ft)
Off / On (Displayed up to 20 characters per line)
QND-7010R QND-7020R/7030R Camera Title -W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : M ulti-line (Max. 5), Color (Grey / Green / Red / Blue / Black /White),
Transparency, Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
Key Features White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
• Max. 4M resolution Electronic Shutter Speed Minimum / Maximum / Anti flicker
• Built-in 2 .8mm fixed lens (QND-7010R) Flip / Mirror Flip / Mirror / Hallway view
IntelligentVideo Analytics Motion detection with metadata,Tampering, Defocus detection
3.6mm fixed lens (QND-7020R) Alarm I/O Input 1 / Output 1
6mm fixed lens (QND-7030R) Motion detection,Tampering detection, SD card error, NAS error,
• Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264) Alarm Triggers Alarm input, Defocus detection
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection Alarm Events File upload via FTP and E-mail, Local storage recording at event,
• micro SD (128GB) memory slot, PoE / 12V DC Notification via E-mail, External output
• IR viewable length 20m, IK08 Pixel Counter Support (Plug-in viewer only)
• Hallway view, WiseStream support NETWORK
• LDC support (Lens Distortion Correction) Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265, H.264, MJPEG
2592 x 1520, 2560 x 1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024,
Resolution 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480,
640 x 480, 640 x 360, 320 x 240
H.265/H.264 : Max 20fps at 4M, Max 30fps at under 2M
Max. Framerate MJPEG : Max 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 :Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR orVBR, MJPEG :VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Built-in mic
G.711 u-law / G.726 selectable
Audio Compression Format G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Dimensions Unit : mm (inch) Audio Communication Uni-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS,
Protocol DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS,
QoS, PIM-SM, UPnP, Bonjour
4455..00((1.1.777")7") HTTPS(SSL) login authentication, Digest login authentication
8866..00 ((33..339"9)") Security IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
micro SD/SDHC/SDXC Max. 128G, NAS
Storage - Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language Swedish, Portuguese,Turkish, Polish, Czech, Dutch, Hungarian, Greek
Ø1Ø11100..00 ((44..3333")") Web Viewer Supported OS :Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
SBP-300NB SBP-300B Non-plugin Webviewer
Central Management Software - Supported Browser : Google Chrome 47, MS Edge 20
ENVIRONMENTAL - Support Codec : -Video : H.264, MJPEG (Max. 1M 15fps) - Audio : G.711
Plug-in Webviewer
Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
SmartViewer
OperatingTemperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
StorageTemperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Accessories (Optional) Vandal Resistance IK08
ELECTRICAL
InputVoltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Max. 7W (PoE), Max. 5.8W (12V DC) : QND-7010R
Power Consumption Max. 6.5W (PoE), Max. 5.43W (12V DC) : QND-7020R/7030R
MECHANICAL
Color / Material Ivory / Plastic
Dimensions (WxH) Ø110.0 x 86.0mm (Ø4.33”x 3.39”)
Weight 290g (0.64 lb)
SBP-300HM7 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300PM SBP-300KM * The latest product information / specification can be found at hanwha-security.eu
10
