Page 9 - Q SERIES WISENET
P. 9

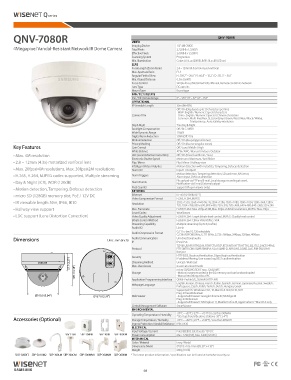

-7080R QNV-7080R
4Megapixel Vandal-Resistant Network IR Dome Camera VIDEO
Imaging Device 1/3" 4M CMOS
Total Pixels 2,720(H) x 1,536(V)
Effective Pixels 2,688(H) x 1,520(V)
Scanning System Progressive
Min. Illumination Color : 0.15Lux (30IRE), B/W : 0Lux (IR LED on)
LENS
Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio F1.4
Angular Field of View H : 109.7˚ ~ 26.0˚ / V : 60.8˚ ~ 15.2˚ / D : 131.3˚ ~ 30.1˚
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network
Lens Type DC auto iris
Mount Type Board type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IR Viewable Length 30m (98.43ft)
Camera Title Off / On (Displayed up to 20 characters per line)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : M ulti-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Key Features Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
• Max. 4M resolution LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
• 2.8 ~ 12mm (4.3x) motorized varifocal lens Electronic Shutter Speed Minimum / Maximum / Anti flicker
• Max. 20fps@4M resolutions, Max. 30fps@2M resolutions Flip / Mirror Flip / Mirror / Hallway view
• H.265, H.264, MJPEG codec supported, Multiple streaming Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus detection
• Day & Night (ICR), WDR (120dB) Alarm I/O Input 1 / Output 1
• Motion detection, Tampering, Defocus detection Motion detection, Tampering detection, SD card error, NAS error,
• micro SD (128GB) memory slot, PoE / 12V DC Alarm Triggers Alarm input, Defocus detection
• IR viewable length 30m, IP66, IK10
• Hallway view support Alarm Events File upload via FTP and E-mail, Local storage recording at event,
• LDC support (Lens Distortion Correction) Notification via E-mail, External output
Pixel Counter Support (Plug-in viewer only)
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265, H.264, MJPEG
2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x
Resolution 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max. 20fps at 4M, Max. 30fps at 2M all resolutions, MJPEG : Max. 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Line in
G.711 u-law / G.726 selectable
Audio Compression Format G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Dimensions Unit : mm (inch) Audio Communication Uni-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE,
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP,
Bonjour
HTTPS(SSL) login authentication, Digest login authentication
575.7.77((22..2277"")) Security IP address filtering, User access log, 802.1x authentication
10160.61. (1 (4.4.1188""))
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
Storage micro SD/SDHC/SDXC max. 128G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Webpage Language Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
ØØ110000..00((33.9.94"4) ") ØØ113377..00 ((55..3399")") Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
Central Management Software - Supported Browser : Google Chrome 47, MS Edge 20
Plug-in Webviewer
- Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
SmartViewer
ENVIRONMENTAL
-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Accessories (Optional) Operating Temperature / Humidity * Start up should be done at above -20°C (-4°F)
SBV-136B SBP-300NB SBP-300B SBP-300PM Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance IP66 / IK10
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption Max. 7.2W (PoE), Max. 6.4W (12V DC)
MECHANICAL
Color / Material Ivory / Metal
Dimensions (WxH) Ø137.0 x 106.1mm (Ø5.39" x 4.18")
Weight 680g (1.5 lb)
SHD-3000F3 SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM * The latest product information / specification can be found at hanwha-security.eu
