Page 7 - Q SERIES WISENET
P. 7

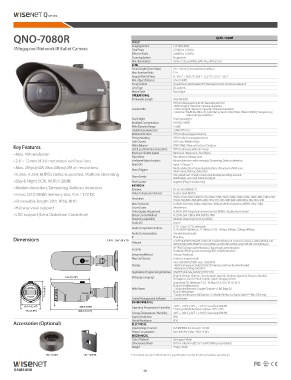

-7080R QNO-7080R
4Megapixel Network IR Bullet Camera VIDEO
Imaging Device 1/3" 4M CMOS
Total Pixels 2,720(H) x 1,536(V)
Effective Pixels 2,688(H) x 1,520(V)
Scanning System Progressive
Min. Illumination Color : 0.15Lux (30IRE), B/W : 0Lux (IR LED on)
LENS
Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio F1.4
Angular Field ofView H : 109.7˚ ~ 26.0˚ /V : 60.8˚ ~ 15.2˚ / D : 131.3˚ ~ 30.1˚
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (MotorizedV/F) / Manual, Remote control via network
Lens Type DC auto iris
Mount Type Board type
OPERATIONAL
IRViewable Length 30m (98.43ft)
Camera Title Off / On (Displayed up to 20 characters per line)
-W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : M ulti-line (Max. 5), Color (Grey / Green / Red / Blue / Black /White),Transparency,
Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC /WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
Key Features White Balance ATW / AWC / Manual / Indoor / Outdoor
• Max. 4M resolution LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 20fps@4M, Max.30fps@2M all resolutions Electronic Shutter Speed Minimum / Maximum / Anti flicker
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB) Flip / Mirror Flip / Mirror / Hallway view
• Motion detection, Tampering, Defocus detection
• micro SD (128GB) memory slot, PoE / 12V DC IntelligentVideo Analytics Motion detection with metadata,Tampering, Defocus detection
• IR viewable length 30m, IP66, IK10
• Hallway view support Alarm I/O Input 1 / Output 1
• LDC support (Lens Distortion Correction)
Alarm Triggers Motion detection,Tampering detection, SD card error, NAS error,
Alarm input, Defocus detection
Alarm Events File upload via FTP and E-mail, Local storage recording at event,
Notification via E-mail, External output
Pixel Counter Support (Plug-in viewer only)
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265, H.264, MJPEG
Resolution 2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max. 20fps at 4M, Max. 30fps at 2M all resolutions, MJPEG : Max. 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 :Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR orVBR, MJPEG :VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Line in
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
Dimensions Unit : mm (inch) IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
Storage micro SD/SDHC/SDXC max. 128G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
152.0 (5.98") Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish,Turkish, Dutch, Hungary, Greek
77.6 (3.06") Web Viewer Supported OS :Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in freeWebviewer
- Supported Browser : Google Chrome 47, MS Edge 20
Plug-in Webviewer
- Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer
ENVIRONMENTAL
Ø70.0 (2.76") 246.0 (9.69") OperatingTemperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
75.2 (2.96") 259.3 (10.21") * Start up should be done at above -20°C (-4°F)
Accessories (Optional) StorageTemperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
ELECTRICAL
InputVoltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption Max. 8W (PoE), Max. 7W (12V DC)
MECHANICAL
Color / Material Dark gray / Metal
Dimensions (WxH) Ø70.0 x 246.0mm (Ø2.76" x 9.69") (Without sunshield)
Weight 750g (1.65 lb)
SBO-100B1 SBP-302PM * The latest product information / specification can be found at hanwha-security.eu
06
