Page 10 - Q SERIES WISENET
P. 10

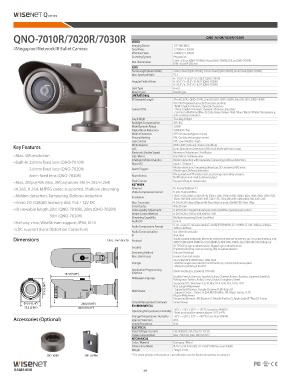

-7010R/7020R/7030R QNO-7010R/7020R/7030R
4Megapixel Network IR Bullet Camera VIDEO
Imaging Device 1/3” 4M CMOS
Total Pixels 2,720(H) x 1,536(V)
Effective Pixels 2,688(H) x 1,520(V)
Scanning System Progressive
Color : 0.5Lux (QNO-7010R), 0.4Lux (QNO-7020R), 0.3Lux (QNO-7030R)
Min. Illumination B/W : 0Lux (IR LED on)
LENS 2.8mm fixed (QNO-7010R), 3.6mm fixed (QNO-7020R), 6mm fixed (QNO-7030R)
Focal Length (Zoom Ratio)
Max. Aperture Ratio F2.2
H : 110.0˚ / V : 63.0˚ / D : 128.0˚ (QNO-7010R)
Angular Field of View H : 81.0˚ / V : 45.0˚ / D : 95.0˚ (QNO-7020R)
H : 53.0˚ / V : 31.0˚ / D : 62.0˚ (QNO-7030R)
Lens Type Fixed
Mount Type Board type
OPERATIONAL
IR Viewable Length 20m (65.62ft) : QNO-7010R, 25m (82.02ft) : QNO-7020R, 30m (98.43ft) : QNO-7030R
Off / On (Displayed up to 20 characters per line)
Camera Title - W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency,
Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Key Features LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker
• Max. 4M resolution Flip / Mirror Flip / Mirror / Hallway view
• Built-in 2.8mm fixed lens (QNO-7010R) Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus detection
Alarm I/O Input 1 / Output 1
3.6mm fixed lens (QNO-7020R) Motion detection, Tampering detection, SD card error, NAS error,
6mm fixed lens (QNO-7030R) Alarm Triggers Alarm input, Defocus detection
• Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming Alarm Events File upload via FTP and E-mail, Local storage recording at event,
• Motion detection, Tampering, Defocus detection Notification via E-mail, External output
• micro SD (128GB) memory slot, PoE / 12V DC Pixel Counter Support (Plug-in viewer only)
• IR viewable length 20m (QNO-7010R), 25m (QNO-7020R) NETWORK
Ethernet RJ-45 (10/100BASE-T)
30m (QNO-7030R) Video Compression Format H.265, H.264, MJPEG
• Hallway view, WiseStream support, IP66, IK10 2592 x 1520, 2560 x 1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720,
• LDC support (Lens Distortion Correction) Resolution 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max 20fps at 4M, Max 30fps at under 2M MJPEG : Max 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Line-in
G.711 u-law / G.726 selectable G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps,
Audio Compression Format 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
Dimensions TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
Unit : mm (inch) Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
micro SD/SDHC/SDXC Max. 128G, NAS
Storage - Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming
115522..00 ((55..9988")") Interface ONVIF Profile S/G, SUNAPI (HTTP API)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Portuguese, Turkish, Polish, Czech, Dutch, Hungarian, Greek
Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
7777..66 ((33..006"6)") Web Viewer Non-plugin Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
- Support Codec : - Video : H.264, MJPEG (Max. 1M 15fps) - Audio : G.711
Plug-in Webviewer
Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer
ØØ7700..00 ((22..7766"")) 24264.06(.09.6(99."6) 9") ENVIRONMENTAL
7755.2.2((22..9966"")) 225599..33((1100.2.21"1) ") -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Operating Temperature / Humidity * Start up should be done at above -20°C (-4°F)
Accessories (Optional)
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption Max. 7W (PoE), Max. 6W (12V DC)
MECHANICAL
Color / Material Dark gray / Metal
Dimensions (WxH) Ø70.0 x 246.0mm (Ø2.76” x 9.69”) (Without sunshield)
Weight 730g (1.61 lb)
SBO-100B1 SBP-302PM * The latest product information / specification can be found at hanwha-security.eu
09
