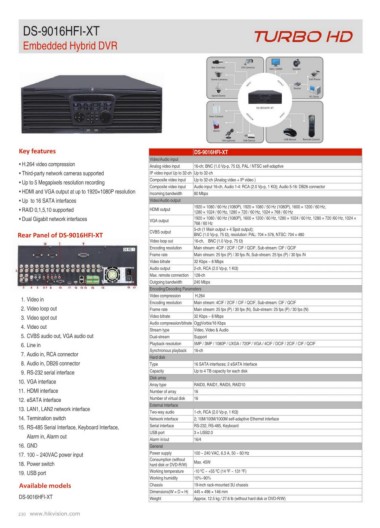

Page 230 - Hikvision Products Catalog 2015
P. 230
9016HFI-XT
Embedded Hybrid DVR
Box Cameras DIS Cameras VGA / HDMI Speaker
Dome Cameras Router
Speed Dome ACCESSIES INPUT OUTPUT Cell Phone
PC Client
Door Contact
DS-9016HFI-XT
control
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-9016HFI-XT
• H.264 video compression Video/Audio input
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording Analog video input 16-ch; BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
• HDMI and VGA output at up to 1920×1080P resolution
• Up to 16 SATA interfaces IP video input Up to 32-ch Up to 32-ch
• RAID 0,1,5,10 supported
• Dual Gigabit network interfaces Composite video input Up to 32-ch (Analog video + IP video )
Rear Panel of DS-9016HFI-XT Composite video input Audio input 16-ch, Audio 1-4: RCA (2.0 Vp-p, 1 KΩ); Audio 5-16: DB26 connector
1. Video in Incoming bandwidth 80 Mbps
2. Video loop out
3. Video spot out Video/Audio output
4. Video out
5. CVBS audio out, VGA audio out HDMI output 1920 × 1080 / 60 Hz (1080P), 1920 × 1080 / 50 Hz (1080P), 1600 × 1200 / 60 Hz,
6. Line in 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
7. Audio in, RCA connector
8. Audio in, DB26 connector VGA output 1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 /60 Hz, 1024 ×
9. RS-232 serial interface 768 / 60 Hz
10. VGA interface
11. HDMI interface CVBS output 5-ch (1 Main output + 4 Spot output);
12. eSATA interface BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
13. LAN1, LAN2 network interface
14. Termination switch Video loop out 16-ch, BNC (1.0 Vp-p, 75 Ω)
15. RS-485 Serial Interface, Keyboard Interface,
Encoding resolution Main stream: 4CIF / 2CIF / CIF / QCIF, Sub-stream: CIF / QCIF
Alarm in, Alarm out
16. GND Frame rate Main stream: 25 fps (P) / 30 fps /N, Sub-stream: 25 fps (P) / 30 fps /N
17. 100 ~ 240VAC power input
18. Power switch Video bitrate 32 Kbps ~ 8 Mbps
19. USB port
Available models Audio output 2-ch, RCA (2.0 Vp-p, 1 KΩ)
DS-9016HFI-XT
Max. remote connection 128-ch
230 www.hikvision.com
Outgoing bandwidth 240 Mbps
Encoding/Decoding Parameters
Video compression H.264
Encoding resolution Main stream: 4CIF / 2CIF / CIF / QCIF, Sub-stream: CIF / QCIF
Frame rate Main stream: 25 fps (P) / 30 fps (N), Sub-stream: 25 fps (P) / 30 fps (N)
Video bitrate 32 Kbps ~ 8 Mbps
Audio compression/bitrate OggVorbis/16 Kbps
Stream type Video, Video & Audio
Dual-stream Support
Playback resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 16-ch
Hard disk
Type 16 SATA interfaces; 2 eSATA interface
Capacity Up to 4 TB capacity for each disk
Disk array
Array type RAID0, RAID1, RAID5, RAID10
Number of array 16
Number of virtual disk 16
External interface
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network interface 2; 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB port 3 × USB2.0
Alarm in/out 16/4
General
Power supply 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz
Consumption (without Max. 45W
hard disk or DVD-R/W)
Working temperature -10 ºC ~ +55 ºC (14 ºF ~ 131 ºF)
Working humidity 10%~90%
Chassis 19-inch rack-mounted 3U chassis
Dimensions(W × D × H) 445 × 496 × 146 mm
Weight Approx. 12.5 kg / 27.6 lb (without hard disk or DVD-R/W)
