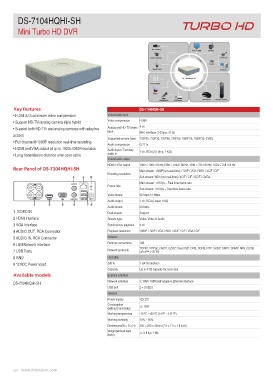

P. 226
7104HQHI-SH
Mini Turbo HD DVR
Box Cameras VGA / HDMI Speaker
Dome Cameras DS-7104HQHI-SH
ACCESSIES INPUT OUTPUT Cell Phone
Speed Dome PC Client
Router
Door Contact
control
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-7104HQHI-SH
• H.264 & Dual-stream video compression
• Support HD-TVI/analog camera triple hybrid Video/Audio input
• Support both HD-TVI and analog cameras with adaptive
access Video compression H.264
• Full channel@1080P resolution real-time recording
• HDMI and VGA output at up to 1920×1080Presolution Analog and HD-TVI video 4-ch
• Long transmission distance over coax cable input BNC interface (1.0Vp-p, 75 Ω)
Rear Panel of DS-7104HQHI-SH Supported camera types 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
1. VIDEO IN Audio compression G.711u
2 HDMI Interface Audio input / Two-way 1-ch, RCA (2.0 Vp-p, 1 KΩ)
3 VGA Interface audio in
4 AUDIO OUT, RCA Connector Video/Audio output
5 AUDIO IN, RCA Connector
6 LAN Network Interface HDMI / VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
7 USB Ports
8 GND Encoding resolution Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
9 12VDC Power Input Sub-stream: WD1(non-real-time) / 4CIF / CIF / QCIF / QVGA
Available models Frame rate Main stream: 1/16 fps ~ Real time frame rate
DS-7104HQHI-SH Sub-stream: 1/16 fps ~ Real time frame rate
Video bitrate 32 Kbps-10 Mbps
Audio output 1-ch, RCA (Linear, 1KΩ)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / VGA / CIF
Network
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI,
UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 4 TB capacity for each disk
External interface
Network interface 1; 10M / 100M self-adaptive Ethernet interface
USB port 2 × USB2.0
General
Power supply 12V DC
Consumption ≤ 15W
(without hard disks)
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Dimensions(W × D × H) 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch)
Weight(without hard ≤ 0.8 kg / 1.8lb
disks)
226 www.hikvision.com
