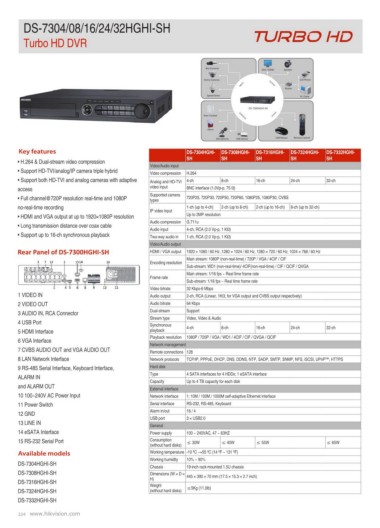

Page 224 - Hikvision Products Catalog 2015
P. 224
7304/08/16/24/32HGHI-SH
Turbo HD DVR
Box Cameras VGA / HDMI Speaker
Dome Cameras DS-7300HGHI-SH
ACCESSIES INPUT OUTPUT Cell Phone
Speed Dome PC Client
Router
Door Contact
control
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-7304HGHI- DS-7308HGHI- DS-7316HGHI- DS-7324HGHI- DS-7332HGHI-
• H.264 & Dual-stream video compression SH SH SH SH SH
• Support HD-TVI/analog/IP camera triple hybrid
• Support both HD-TVI and analog cameras with adaptive Video/Audio input
access
• Full channel@720P resolution real-time and 1080P Video compression H.264
no-real-time recording
• HDMI and VGA output at up to 1920×1080P resolution Analog and HD-TVI 4-ch 8-ch 16-ch 24-ch 32-ch
• Long transmission distance over coax cable
• Support up to 16-ch synchronous playback video input BNC interface (1.0Vp-p, 75 Ω)
Rear Panel of DS-7300HGHI-SH Supported camera 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
types
1 VIDEO IN
2 VIDEO OUT IP video input 1-ch (up to 4-ch) 2-ch (up to 8-ch) 2-ch (up to 16-ch) 8-ch (up to 32-ch)
3 AUDIO IN, RCA Connector Up to 2MP resolution
4 USB Port
5 HDMI Interface Audio compression G.711u
6 VGA Interface
7 CVBS AUDIO OUT and VGA AUDIO OUT Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
8 LAN Network Interface
9 RS-485 Serial Interface, Keyboard Interface, Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 KΩ)
ALARM IN
and ALARM OUT Video/Audio output
10 100~240V AC Power Input
11 Power Switch HDMI / VGA output 1920 × 1080 / 60 Hz ,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
12 GND
13 LINE IN Encoding resolution Main stream: 1080P (non-real-time) / 720P / VGA / 4CIF / CIF
14 eSATA Interface Sub-stream: WD1 (non-real-time)/ 4CIF(non-real-time) / CIF / QCIF / QVGA
15 RS-232 Serial Port
Frame rate Main stream: 1/16 fps ~ Real time frame rate
Available models Sub-stream: 1/16 fps ~ Real time frame rate
DS-7304HGHI-SH
DS-7308HGHI-SH Video bitrate 32 Kbps-6 Mbps
DS-7316HGHI-SH
DS-7324HGHI-SH Audio output 2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively)
DS-7332HGHI-SH
Audio bitrate 64 Kbps
224 www.hikvision.com
Dual-stream Support
Stream type Video, Video & Audio
Synchronous 4-ch 8-ch 16-ch 24-ch 32-ch
playback
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network management
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
Type 4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity Up to 4 TB capacity for each disk
External interface
Network interface 1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
Alarm in/out 16 / 4
USB port 3 × USB2.0
General
Power supply 100 ~ 240VAC, 47 ~ 63HZ
Consumption ≤ 30W ≤ 40W ≤ 55W ≤ 65W
(without hard disks)
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions (W ×D× 445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch)
H)
Weight ≤5Kg (11.0lb)
(without hard disks)
