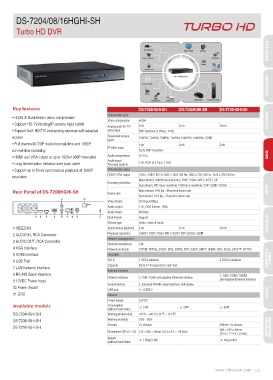

Page 223 - Hikvision Products Catalog 2015
P. 223
7204/08/16HGHI-SH
Turbo HD DVR
Box Cameras VGA / HDMI Speaker PTZ DOME
Dome Cameras DS-7200HGHI-SH
ACCESSIES INPUT OUTPUT Cell Phone
Speed Dome PC Client
Router
Door Contact
control NETWORK
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-7204HGHI-SH DS-7208HGHI-SH DS-7216HGHI-SH ANALOG
• H.264 & Dual-stream video compression
• Support HD-TVI/analog/IP camera triple hybrid Video/Audio input
• Support both HD-TVI and analog cameras with adaptive
access Video compression H.264
• Full channel@720P resolution real-time and 1080P
no-real-time recording Analog and HD-TVI 4-ch 8-ch 16-ch
• HDMI and VGA output at up to 1920×1080P resolution video input BNC interface (1.0Vp-p, 75 Ω)
• Long transmission distance over coax cable
• Support up to 16-ch synchronous playback at 1080P Supported camera 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
resolution types
Rear Panel of DS-7200HGHI-SH IP video input 1-ch 2-ch 2-ch
Up to 2MP resolution
1 VIDEO IN DVR
2 AUDIO IN, RCA Connector Audio compression G.711u
3 AUDIO OUT, RCA Connector
4 VGA Interface Audio input / 1-ch, RCA (2.0 Vp-p, 1 KΩ)
5 HDMI Interface Two-way audio in
6 USB Port
7 LAN Network Interface Video/Audio output
8 RS-485 Serial Interface
9 12VDC Power Input HDMI / VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
10 Power Switch
11 GND Encoding resolution Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Available models NVR
DS-7204HGHI-SH Frame rate Main stream: 1/16 fps ~ Real time frame rate
DS-7208HGHI-SH Sub-stream: 1/16 fps ~ Real time frame rate
DS-7216HGHI-SH.
Video bitrate 32 Kbps-6 Mbps
Audio output 1-ch, RCA (Linear, 1KΩ)
Audio bitrate 64 Kbps
Dual-stream Support ATM DVR
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network management
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS VIDEO
ENCODER
Hard disk
SATA 1 SATA interface 2 SATA interfaces
Capacity Up to 4 TB capacity for each disk
External interface
Network interface 1; 10M / 100M self-adaptive Ethernet interface 1; 10M / 100M / 1000M
self-adaptive Ethernet interface
Serial interface 1; standard RS-485 serial interface, half-duplex
USB port 2 × USB2.0 CARD
General
Power supply 12V DC
Consumption ≤ 15W ≤ 20W ≤ 20W
(without hard disks)
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90% NETWORK
STORAGE
Chassis 1U chassis 380mm 1U chassis
Dimensions (W × D × H) 315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch) 380 × 290 × 48mm
(15.0 × 11.4 × 1.9 inch)
Weight ≤ 1.5Kg (3.3lb) ≤ 2Kg (4.4lb)
(without hard disks)
www.hikvision.com 223
