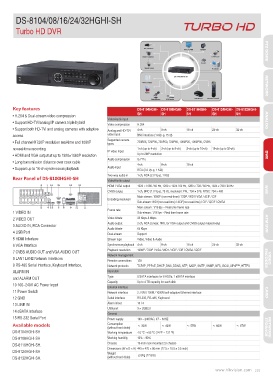

Page 225 - Hikvision Products Catalog 2015
P. 225
8104/08/16/24/32HGHI-SH
Turbo HD DVR
Box Cameras VGA / HDMI Speaker PTZ DOME
Dome Cameras DS-8100HGHI-SH
ACCESSIES INPUT OUTPUT Cell Phone
Speed Dome PC Client
Router
Door Contact
control NETWORK
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-8104HGHI- DS-8108HGHI- DS-8116HGHI- DS-8124HGHI- DS-8132HGHI- ANALOG
• H.264 & Dual-stream video compression SH SH SH SH SH
• Support HD-TVI/analog/IP camera triple hybrid
• Support both HD-TVI and analog cameras with adaptive Video/Audio input
access
• Full channel@720P resolution real-time and 1080P Video compression H.264
no-real-time recording
• HDMI and VGA output at up to 1920×1080P resolution Analog and HD-TVI 4-ch 8-ch 16-ch 24-ch 32-ch
• Long transmission distance over coax cable video input BNC interface (1.0Vp-p, 75 Ω)
• Support up to 16-ch synchronous playback
Supported camera 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Rear Panel of DS-8100HGHI-SH types
1 VIDEO IN IP video input 1-ch (up to 4-ch) 2-ch (up to 8-ch) 2-ch (up to 16-ch) 16-ch (up to 32-ch)
2 VIDEO OUT Up to 2MP resolution
3 AUDIO IN, RCA Connector DVR
4 USB Port Audio compression G.711u
5 HDMI Interface
6 VGA Interface Audio input 4-ch 8-ch 16-ch
7 CVBS AUDIO OUT and VGA AUDIO OUT RCA (2.0 Vp-p, 1 KΩ)
8 LAN1 LAN2 Network Interfaces
9 RS-485 Serial Interface, Keyboard Interface, Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 KΩ)
ALARM IN
and ALARM OUT Video/Audio output
10 100~240V AC Power Input
11 Power Switch HDMI / VGA output 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz NVR
12 GND
13 LINE IN CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
14 eSATA Interface
15 RS-232 Serial Port Encoding resolution Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF
Available models Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
DS-8104HGHI-SH
DS-8108HGHI-SH Frame rate Main stream: 1/16 fps ~ Real time frame rate
DS-8116HGHI-SH. Sub-stream: 1/16 fps ~ Real time frame rate
DS-8124HGHI-SH ATM DVR
DS-8132HGHI-SH. Video bitrate 32 Kbps-6 Mbps
Audio output 2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch 24-ch 32-ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF VIDEO
ENCODER
Network management
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
Type 8 SATA interfaces for 8 HDDs; 1 eSATA interface
Capacity Up to 4 TB capacity for each disk
External interface CARD
Network interface 2; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
Alarm in/out 16 / 4
USB port 3 × USB2.0
General
Power supply 100 ~ 240VAC, 47 ~ 63HZ NETWORK
STORAGE
Consumption ≤ 30W ≤ 40W ≤ 55W ≤ 60W ≤ 67W
(without hard disks)
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 2U chassis
Dimensions (W × D × H) 445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch)
Weight ≤8Kg (17.6 lb)
(without hard disks)
www.hikvision.com 225
