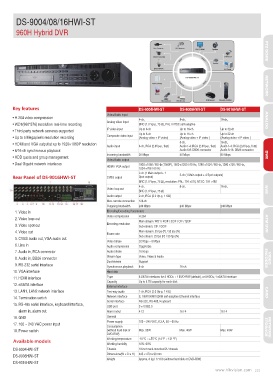

960H Hybrid DVR
Box Cameras DIS Cameras VGA / HDMI Speaker PTZ DOME
Dome Cameras
Speed Dome ACCESSIES INPUT OUTPUT Cell Phone
PC Client
Door Contact Router
DS-9000HWI-ST NETWORK
control
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-9004HWI-ST DS-9008HWI-ST DS-9016HWI-ST ANALOG
• H.264 video compression Video/Audio input
• WD1(960*576) resolution real-time recording
• Third-party network cameras supported Analog video input 4-ch, 8-ch, 16-ch,
• Up to 5 Megapixels resolution recording BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
• HDMI and VGA output at up to 1920×1080P resolution
• 8/16-ch synchronous playback IP video input Up to 8-ch Up to 16-ch Up to 32-ch
• HDD quota and group management
• Dual Gigabit network interfaces Composite video input Up to 8-ch Up to 16-ch Up to 32-ch
(Analog video + IP video) (Analog video + IP video ) (Analog video + IP video )
Rear Panel of DS-9016HWI-ST
Audio input 4-ch, RCA (2.0Vp-p, 1kΩ) 8-ch, 16-ch,
1. Video in Audio 1-4: RCA (2.0Vp-p, 1kΩ) Audio 1-4: RCA (2.0Vp-p, 1kΩ)
2. Video loop out Audio 5-8: DB26 connector Audio 5-16: DB26 connector DVR
3. Video spot out
4. Video out Incoming bandwidth 20 Mbps 40 Mbps 80 Mbps
5. CVBS audio out, VGA audio out
6. Line in Video/Audio output
7. Audio in, RCA connector
8. Audio in, DB26 connector HDMI / VGA output 1920 ×1080 / 60 Hz (1080P), 1600 ×1200 / 60 Hz, 1280 ×1024 / 60 Hz, 1280 ×720 / 60 Hz,
9. RS-232 serial interface 1024 ×768 / 60 Hz
10. VGA interface
11. HDMI interface CVBS output 2-ch (1 Main output + 1 5-ch (1 Main output + 4 Spot outputs)
12. eSATA interface Spot output)
13. LAN1, LAN2 network interface
14. Termination switch BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 ×576, NTSC: 704 ×480
15. RS-485 serial interface, keyboard Interface,
Video loop out 4-ch, 8-ch, 16-ch, NVR
alarm in, alarm out BNC (1.0 Vp-p, 75 Ω)
16. GND
17. 100 ~ 240 VAC power input Audio output 2-ch, RCA (2.0 Vp-p, 1 KΩ)
18. Power switch
Max. remote connection 128-ch
Available models
DS-9004HWI-ST Outgoing bandwidth 240 Mbps 240 Mbps 240 Mbps
DS-9008HWI-ST
DS-9016HWI-ST Encoding/Decoding Parameters
Video compression H.264 ATM DVR
Encoding resolution Main stream: WD1 / 4CIF / 2CIF / CIF / QCIF
Sub-stream: CIF / QCIF
Frame rate Main stream: 25 fps (P) / 30 fps (N)
Sub-stream: 25 fps (P) / 30 fps (N)
Video bitrate 32 Kbps ~ 8 Mbps
Audio compression OggVorbis
Audio bitrate 16 Kbps VIDEO
ENCODER
Stream type Video, Video & Audio
Dual-stream Support
Synchronous playback 8-ch 16-ch
Hard disk
Type 8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs; 1 eSATA interface
Capacity Up to 4 TB capacity for each disk
External interface CARD
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network interface 2; 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB port 3 × USB2.0
Alarm in/out 4/2 16 / 4 16 / 4
General NETWORK
STORAGE
Power supply 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz
Consumption Max. 35W Max. 40W Max. 45W
(without hard disk or
DVD-R/W)
Working temperature -10 ºC ~ +55 ºC (14 ºF ~ 131 ºF)
Working humidity 10%~90%
Chassis 19-inch rack-mounted 2U chassis
Dimensions(W × D × H) 445 × 470 × 90 mm
Weight Approx. 8 kg / 17.6 lb (without hard disk or DVD-R/W)
