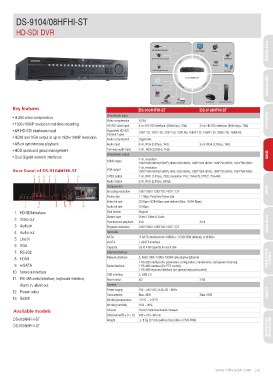

P. 235
9104/08HFHI-ST
HD-SDI DVR
HD-SDI Box Cameras VGA / HDMI Speaker PTZ DOME
HD-SDI Dome Cameras DS-9100HFHI-ST
HD-SDI Speed Dome ACCESSIES INPUT OUTPUT Cell Phone
PC Client
Door Contact Router
control NETWORK
Alarm
Microphone USB Device USB Mouse Remote Control
Key features DS-9104HFHI-ST DS-9108HFHI-ST ANALOG
• H.264 video compression Video/Audio input H.264 8-ch; HD-SDI interface; (800mVp-p, 75Ω)
• 1920×1080P resolution real-time recording Video compression 4-ch; HD-SDI interface; (800mVp-p, 75Ω)
• 4/8 HD-SDI interfaces input HD-SDI video input
• HDMI and VGA output at up to 1920×1080P resolution Supported HD-SDI 720P / 25, 720P / 30, 720P / 50, 720P /60, 1080P / 25, 1080P / 30, 1080I / 50, 1080I /60,
• 4/8-ch synchronous playback Camera Types
• HDD quota and group management Audio compression OggVorbis 8-ch, RCA (2.0Vp-p, 1kΩ)
• Dual Gigabit network interfaces Audio input 4-ch, RCA (2.0Vp-p, 1kΩ)
Two-way audio input 1-ch, RCA (2.0Vp-p, 1kΩ) DVR
Rear Panel of DS-9104HFHI-ST Video/Audio output
1-ch, resolution:
1. HD-SDI interface HDMI output 1920*1080 /60Hz(1080P),1600×1200 /60Hz, 1280*1024 /60Hz, 1280*720 /60Hz, 1024*768 /60Hz
2. Video out 1-ch, resolution:
3. Audio in VGA output 1920*1080 /60Hz(1080P),1600×1200 /60Hz, 1280*1024 /60Hz, 1280*720 /60Hz, 1024*768 /60Hz
4. Audio out 1-ch, BNC (1.0Vp-p, 75Ω), resolution: PAL: 704×576, NTSC: 704×480
5. Line in CVBS output
6. VGA Audio Output 2-ch, RCA (2.0Vp-p, 600Ω)
7. RS-232 Compression
8. HDMI Encoding resolution 1920*1080 / 1280*720 / 4CIF / CIF NVR
9. e-SATA Frame rate 1 / 16fps- Real time frame rate
10. Network interface Video bit rate 32 Kbps-16384 Kbps user defined (Max. 16384 Kbps) ATM DVR
11. RS-485 serial interface, keyboard interface, Audio bit rate 16 Kbps
Dual stream Support
Alarm in, alarm out Stream type Video / Video & Audio
12. Power outlet Synchronous playback 4-ch 8-ch
13. Switch Playback resolution 1920*1080 / 1280*720 / 4CIF / CIF
Hard disk
Available models SATA 8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs VIDEO
DS-9104HFHI-ST eSATA 1 eSATA interface ENCODER
DS-9108HFHI-ST Capacity Up to 4TB capacity for each disk
External interface
Network interface 2, RJ45 10M / 100M / 1000M self-adaptive Ethernet
1 RS-232 interface (for parameters configuration, maintenance, transparent channel);
Serial interface 1 RS-485 interface (for PTZ control);
1 RS-485 keyboard interface (for special keyboard control)
USB interface 2, USB 2.0
Alarm in/out 4/2 16/4
General
Power supply 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz Max. 55W CARD
Consumption Max. 40W
Working temperature -10 ºC ~ +55 ºC NETWORK
Working humidity 10% ~ 90% STORAGE
Chassis 19-inch rack-mounted 2U chassis
Dimensions(W × D × H) 445 × 470 ×90 mm
Weight ≤ 8 Kg (17.6 lb) (without hard disk or DVD-R/W)
www.hikvision.com 235
