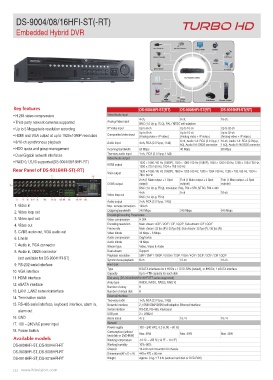

P. 232
9004/08/16HFI-ST(-RT)
Embedded Hybrid DVR
Box Cameras HD-SDI Cameras VGA / HDMI Speaker
Dome Cameras
Speed Dome ACCESSIES INPUT OUTPUT Cell Phone
PC Client
Door Contact Router
DS-9000HFI-ST(RT)
control
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-9004HFI-ST(RT) DS-9008HFI-ST(RT) DS-9016HFI-ST(RT)
• H.264 video compression Video/Audio input
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording Analog Video input 4-ch, 8-ch, 16-ch,
• HDMI and VGA output at up to 1920×1080P resolution BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
• 8/16-ch synchronous playback
• HDD quota and group management IP Video input Up to 8-ch Up to 16-ch Up to 32-ch
• Dual Gigabit network interfaces
• RAID 0,1,5,10 supported(DS-9004/08/16HFI-RT) Composited video input Up to 8-ch Up to 16-ch Up to 32-ch
(Analog video + IP video) (Analog video + IP video ) (Analog video + IP video )
Rear Panel of DS-9016HFI-ST(-RT)
Audio input 4-ch, RCA (2.0 Vp-p, 1 kΩ) 8-ch, Audio 1-4: RCA (2.0 Vp-p, 1 16-ch, Audio 1-4: RCA (2.0Vp-p,
1. Video in kΩ), Audio 5-8: DB26 connector 1 kΩ), Audio 5-16:DB26 onnector
2. Video loop out
3. Video spot out Incoming bandwidth 20 Mbps 40 Mbps 80 Mbps
4. Video out
5. CVBS audio out, VGA audio out Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
6. Line in
7. Audio in, RCA connector Video/Audio output
8. Audio in, DB26 connector
HDMI output 1920 × 1080 / 60 Hz (1080P), 1920 × 1080 / 50 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz,
(not available for DS-9004HFI-ST) 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
9. RS-232 serial interface
10. VGA interface VGA output 1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 ×
11. HDMI interface 768 / 60 Hz
12. eSATA interface
13. LAN1, LAN2 network interface CVBS output 2-ch (1 Main output + 1 Spot 5-ch (1 Main output + 4 Spot 5-ch (1 Main output + 4 Spot
14. Termination switch output) outputs) outputs)
15. RS-485 serial interface, keyboard interface, alarm in,
BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
alarm out
16. GND Video loop out 4-ch 8-ch 16-ch
17. 100 ~ 240VAC power input BNC (1.0 Vp-p, 75 Ω)
18. Power Switch
Available models Audio output 2-ch, RCA (2.0 Vp-p, 1 KΩ)
DS-9004HFI-ST, DS-9004HFI-RT
DS-9008HFI-ST, DS-9008HFI-RT Max. remote connection 128-ch
DS-9016HFI-ST, DS-9016HFI-RT
Outgoing bandwidth 240 Mbps 240 Mbps 240 Mbps
232 www.hikvision.com
Encoding/Decoding Parameters
Video compression H.264
Encoding resolution Main stream: 4CIF / 2CIF / CIF / QCIF; Sub-stream: CIF / QCIF
Frame rate Main stream: 25 fps (P) / 30 fps (N); Sub-stream: 25 fps (P) / 30 fps (N)
Video bitrate 32 Kbps ~ 8 Mbps
Audio compression OggVorbis
Audio bitrate 16 Kbps
Stream type Video, Video & Audio
Dual-stream Support
Playback resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 8-ch 16-ch 16-ch
Hard disk
Type 8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs; 1 eSATA interface
Capacity Up to 4 TB capacity for each disk
Disk array (DS-9004/9008/9016HFI-RT series supported)
Array type RAID0, RAID1, RAID5, RAID10
Number of array 8
Number of virtual disk 8
External interface
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network interface 2; 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB port 2 × USB2.0
Alarm in/out 4/2 16 / 4 16 / 4
General
Power supply 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz
Consumption (without Max. 35W Max. 40W Max. 45W
hard disk or DVD-R/W)
Working temperature -10 ºC ~ +55 ºC (14 ºF ~ 131 ºF)
Working humidity 10%~90%
Chassis 19-inch rack-mounted 2U chassis
Dimensions(W × D × H) 445 × 470 × 90 mm
Weight Approx. 8 kg / 17.6 lb (without hard disk or DVD-R/W)
