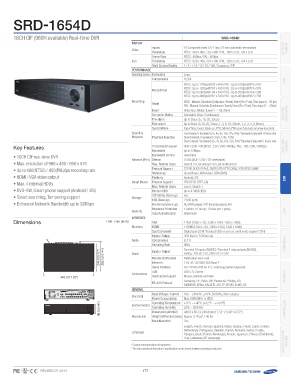

-1654D SRD-1654D
16CH CIF (960H available) Real-time DVR Display NETWORK
Camera
Key Features Video Inputs 16 Composite video 0.5-1 Vpp, 75 ohm automatic termination
• 16CH CIF real-time DVR Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576
• Max. resolution of 960 x 480 / 960 x 576 NTSC : 480fps / PAL : 400fps
• Up to 480(NTSC) / 400(PAL)fps recording rate Frame Rate NTSC : 928 x 480, 704 x 480 / PAL : 928 x 576, 704 x 576
• HDMI / VGA video output 1 / 4 / 7 / 9 / 13 / 16 / 16A / Sequence / PIP
• Max. 4 internal HDDs Live Resolution
• DVD-RW, Smart phone support (Android / iOS) Linux
• Smart searching, Tampering support Multi Screen Display H.264
• Enhanced Network Bandwidth up to 32Mbps
Dimensions Performance
44404.00.0((1177.3.23")2") Operating System Embedded
440.0 (17.32") Compression NVR
Record Rate NTSC : Up to 120fps@928 x 480 / PAL : Up to 100fps@928 x 576
NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576
NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288
NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288
Recording Mode NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30 fps) NETWORK
Search & PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps) PERIPHERAL
Playback Event
Overwrite Modes Video loss, Motion (Level 1 ~ 10), Alarm
Pre-alarm Selectable (Stop / Continuous) Analogue
Post-alarm Up to 30sec (5, 10, 20, 30sec) Camera
Search Mode Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Date/Time, Event, Back up, POS, Motion (*All search include preview function)
Playback Function
Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Transmission Speed 4CIF / 2CIF / CIF (NTSC : 120 / 240 / 480fps, PAL : 100 / 200 / 400fps)
Bandwidth Up to 32Mbps
Bandwidth Control Selectable
Network (IPv4) Stream H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Monitoring SmartViewer, Webviewer, SSM (CMS)
Platform Android, iOS DVR
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 2, Search 1
Internal HDD Up to 4 SATA HDDs
Storage DVD Writer (Back up) Yes
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player), AVI
Security Password Protection 1 Admin, 10 Group, 10 User per 1 group LENS
Data Authentication Watermark
Unit : mm (inch) Interface
VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
Monitors HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Spot Composite Digital spot (2CH) *Incldued OSD on screen, multi mode support (1CH)
Inputs / Output 4CH line in / 1CH line out PERIPHERAL
Audio Compression G.711
Sampling Rate 8KHz
2426.42846(6..9.887((29".9)7.2"7)2") Inputs / Output Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),
22656.2256.(5.1220.((41140".)04.4"4)4") Rating : 30V DC / 2A, 250V AC / 0.25A
Alarm 246.284 (6.9.87(29".)72")
265.226 (5.120.(4140".)44")
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 for PTZ, Samsung system keyboard
Connections USB USB 2.0, 2 ports MONITOR
Applic4a4t0i.o0n(1S7.3u2p")port Mouse, Remote controller
440.0 (17.32") Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
RS-485 Protocol
General
Electrical Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, Auto ranging
Power Consumption Max. 60W (With 1x HDD)
CONTROLLER
8 88.8.008((8.3.30.4(634".)466"")) Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)88.08 (8.3.04(63".)46")
Operating Humidity 20% ~ 85% RH
Dimensions (WxHxD) 440.0 x 88.0 x 246.8mm (17.32" x 3.46" x 9.72")
Mechanical Weight (With hard disks) Approx. 5.2Kg (11.46 lb)
Rack Mount Kit 2ea
Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Access Control
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia, System
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)
* Coaxial communication not supported
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 177
