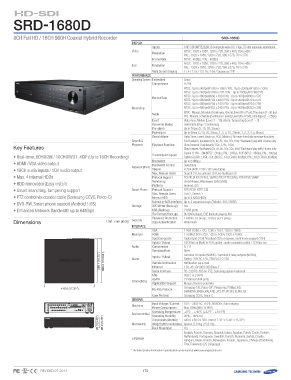

Page 172 - Catalog Samsung 2014
P. 172
-1680D
8CH Full HD / 16CH 960H Coaxial Hybrid Recorder SRD-1680D
Display Inputs 8 HD-SDI SMPTE292M,16 Composite video 0.5-1 Vpp, 75 ohm automatic termination
Video Resolution NTSC : 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 /
PAL : 1920 x 1080, 1280 x 720, 960 x 576, 704 x 576
Frame Rate NTSC : 480fps / PAL : 400fps
NTSC : 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 /
Live Resolution PAL : 1920 x 1080, 1280 x 720, 960 x 576, 704 x 576
1 / 4 / 7 / 9 / 13 / 16 / 16A / Sequence / PIP
Multi Screen Display
Performance Linux
Operating System Embedded H.264
Compression
Record Rate NTSC : Up to 240fps@1920 x 1080 / PAL : Up to 200fps@1920 x 1080
NTSC : Up to 240fps@1280 x 720 / PAL : Up to 200fps@1280x720
Recording NTSC : Up to 480fps@960 x 480 / PAL : Up to 400fps@960 x 576
NTSC : Up to 480fps@704 x 480 / PAL : Up to 400fps@704 x 576
NTSC : Up to 480fps@704 x 240 / PAL : Up to 400fps@704 x 288
NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288
Mode NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30 fps)
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
Key Features Search & Event Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level 1 ~ 3)
Playback Overwrite Modes Selectable (Stop / Continuous)
• Real-time, 8CH@2M / 16CH@WD1, 4CIF (Up to 16CH Recording) Pre-alarm Up to 30sec (5, 10, 20, 30sec)
• HDMI / VGA video output Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
• 16CH audio inputs / 1CH audio output Search Mode Date/Time, Event, Back up, POS, Motion (*All search include preview function)
• Max. 4 internal HDDs
• HDD removable (Easy install) Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
• Smart searching, Tampering support Slow forward / backward (1/2x, 1/4x, 1/8x)
• PTZ control via coaxial cable (Samsung CCVC, Pelco-C) Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
• DVD-RW, Smart phone support (Android / iOS)
• Enhanced Network Bandwidth up to 64Mbps Transmission Speed Option 1) 1M ~ 2M (NTSC : 240fps, PAL : 200fps, 4CIF (NTSC : 480fps, PAL : 400fps)
Option 2) 4CIF / 2CIF / CIF (NTSC : 120 / 240 / 480fps, PAL : 100 / 200 / 400fps)
Bandwidth Up to 64Mbps
Network (IPv4) Bandwidth Control Selectable
Stream H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Monitoring SmartViewer, Webviewer, SSM (CMS)
Platform Android, iOS
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 2, Search 1
Internal HDD Up to 4 SATA HDDs
External (e-SATA Interface) Up to 2 expansion bays (*Model : SVS-5R/5E)
Storage DVD Writer (Back up) Yes
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player), AVI
Dimensions Unit : mm (inch) Security Password Protection 1 Admin, 10 Group, 10 User per 1 group
Data Authentication Watermark
Interface
VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
Monitors HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Spot Composite Digital spot (2CH) *Incldued OSD on screen, multi mode support (1CH)
Inputs / Output 16CH line in (Built-in 4CH, option : audio extension cable) / 1CH line out
Audio Compression G.711
33889.931.8(191.(51. (31125"5)..332"2)") Sampling Rate 8KHz
39369.6.0309((61.150.5(5.19"55).5994")")
Alarm Inputs / Output Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),389.318(91.51. (312"5).32")
Rating : 30V DC / 2A, 250V AC / 0.25A396.309(61.50. (519"5).59")
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 for PTZ, Samsung system keyboard
USB USB 2.0, 2 ports
Connections eSATA 2 External SATA ports
Application Support Mouse, Remote controller
44404.00.0 ((1177.3.23")2") RS-48544P0.r0o(1to7.c32o")l Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
440.0 (17.32") DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
440.0 (17.32")
Coax Protocol Samsung CCVC, Pelco-C
General
Electrical Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, Auto ranging
Power Consumption Max. 60W (With 1x HDD)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85% RH
888.8.00(8(833...044(6"3)6.4")6") 88.08(83..04 (6"3).46")
959.5.99(9(533...977(8"3)8.7")8") Dimensions (WxHxD) 440.0 x 88.0 x 389.1mm (17.32" x 3.46" x 15.32")95.99(53..97 (8"3).78")
Mechanical Weight (With hard disks) Approx. 6.81Kg (15.01 lb)
Rack Mountable Yes
Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish,
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia,
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 172
