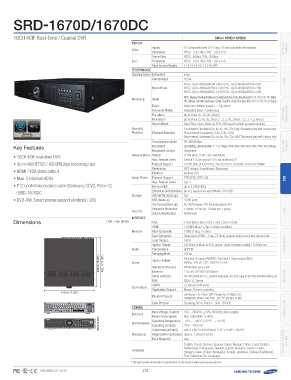

-1670D/1670DC

16CH 4CIF Real-time / Coaxial DVR SRD-1670D/1670DC

Display NETWORK
Camera
Video Inputs 16 Composite video 0.5-1 Vpp, 75 ohm automatic termination
Resolution NTSC : 720 x 480 / PAL : 720 x 576
NTSC : 480fps / PAL : 400fps
Frame Rate NTSC : 720 x 480 / PAL : 720 x 576
1 / 4 / 6 / 8 / 9 / 13 / 16 / PIP
Live Resolution
Linux
Multi Screen Display H.264

Performance

Operating System Embedded

Compression NVR

Record Rate NTSC : Up to 480fps@704 x 480 / PAL : Up to 400fps@704 x 576
NTSC : Up to 480fps@704 x 240 / PAL : Up to 400fps@704 x 288
NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288

Recording Mode NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post),Time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15 / 30fps)
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post),Time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25fps)

Event Video loss, Motion (Level 1 ~ 10), Alarm NETWORK
Overwrite Modes Selectable (Stop / Continuous) PERIPHERAL
Pre-alarm Up to 30sec (5, 10, 20, 30sec)
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search Mode Date/Time, Event, Back up, POS (*All search include preview function)

Search & Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Playback Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only

Transmission Speed CIF 480/400fps Analogue
Camera
Key Features Bandwidth Up to 8Mbps, Unlimited (8M) / 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

• 16CH 4CIF real-time DVR Bandwidth Control Selectable
• Up to 480(NTSC) / 400(PAL)fps recording rate
• HDMI / VGA video output Network (IPv4) Stream H.264 (4CIF / 2CIF / CIF selectable)
• Max. 5 internal HDDs
• PTZ control via coaxial cable (Samsung CCVC, Pelco-C) Max. Remote Users Search 1 / Live unicast 10 / Live multicast 20

: SRD-1670DC Protocol Support TCP/IP, UDP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
• DVD-RW, Smart phone support (Android / iOS)
Monitoring NET-i viewer, SmartViewer, Webviewer

Platform Android, iOS

Smart Phone Protocol Support RTP, RTSP, HTTP, CGI DVR

Max. Remote Users Live 1

Internal HDD Up to 5 SATA HDDs

External (e-SATA Interface) Up to 2 expansion bays (*Model : SVS-5R)

Storage DVD Writer (Back up) Yes

USB (Back up) 3 USB ports

File Format (Back up) BU (DVR player), EXE (Include player), AVI

Security Password Protection 1 Admin, 10 Group, 10 User per 1 group LENS
Data Authentication Watermark

Dimensions Unit : mm (inch) Interface

VGA 1 VGA (800 x 600, 1024 x 768, 1280 x 1024)

HDMI 1 HDMI (480p / 720p / 1080p resolution)

Monitors Main Composite 1 BNC (1 Vpp, 75 ohm)

Spot Composite Digital spot (4 BNC, 1 Vpp, 75 ohm), support multi screen and camera title PERIPHERAL

Loop Outputs 16CH

Inputs / Output 16CH line in (Built-in 4CH, option : audio extension cable) / 1CH line out

Audio Compression ADPCM

4246.2846(2.166.8.8(8(011")66..808")0") Sampling Rate 16KHz
4542.5142(5.127.1.1(8(011")77..808")0")
Alarm Inputs / Output Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO),426.84(2166..88(01")6.80") MONITOR
Connections Rating : 30V DC / 2A, 125V AC / 0.5A452.14(5127..18(01")7.80")
Remote Notification
44404.00.0((1177.3.23")2") Ethernet Notification via e-mail
Serial Interface 1 RJ-45 10/100/1000 Base-T
440.0 (17.32") USB RS-485 (Half) for PTZ, System keyboard, RS-232 support for POS interface (VSI-pro)
eSATA USB 2.0, 3 ports
Application Support 2 External SATA ports
Mouse, Remote controller
440.0 (17.32")
Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
R4S40-.40 (8157.3P2"r)otocol DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO

Coax Protocol Samsung CCVC, Pelco-C : SRD-1670DC CONTROLLER

General

888.8.00 ((83.83..4064(")36.4")6") Electrical Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, Auto ranging88.0 (83.8.406(")3.46")
Power Consumption Max. 55W (With 1x HDD)

Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85% RH

Dimensions (WxHxD) 440.0 x 88.0 x 426.8mm (17.32" x 3.46" x 16.80") Access Control
System
Mechanical Weight (With hard disks) Approx. 7.5Kg (16.53 lb)

Rack Mount Kit 2ea

Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish,
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia,
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)

* The latest product information / specification can be found at www.samsungsecurity.com
