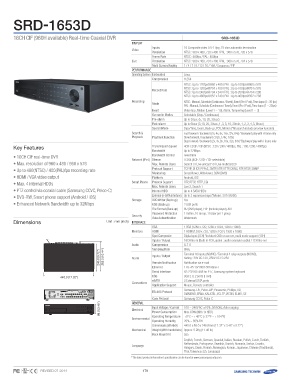

Page 178 - Catalog Samsung 2014
P. 178
-1653D
16CH CIF (960H available) Real-time Coaxial DVR SRD-1653D
Display
Video Inputs 16 Composite video 0.5-1 Vpp, 75 ohm automatic termination
Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576
NTSC : 480fps / PAL : 400fps
Frame Rate NTSC : 960 x 480, 704 x 480 / PAL : 960 x 576, 704 x 576
1 / 4 / 7 / 9 / 13 / 16 / 16A / Sequence / PIP
Live Resolution
Linux
Multi Screen Display H.264
Performance
Operating System Embedded
Compression
Record Rate NTSC : Up to 120fps@960 x 480 / PAL : Up to 100fps@960 x 576
NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576
NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288
NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288
Recording Mode NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30 fps)
Search & PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
Playback Event
Overwrite Modes Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level 1 ~ 3)
Pre-alarm Selectable (Stop / Continuous)
Post-alarm Up to 30sec (5, 10, 20, 30sec)
Search Mode Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Date/Time, Event, Back up, POS, Motion (*All search include preview function)
Playback Function
Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Key Features Transmission Speed 4CIF / 2CIF / CIF (NTSC : 120 / 240 / 480fps, PAL : 100 / 200 / 400fps)
• 16CH CIF real-time DVR Bandwidth Up to 32Mbps
• Max. resolution of 960 x 480 / 960 x 576
• Up to 480(NTSC) / 400(PAL)fps recording rate Bandwidth Control Selectable
• HDMI / VGA video output
• Max. 4 internal HDDs Network (IPv4) Stream H.264 (4CIF / 2CIF / CIF selectable)
• PTZ control via coaxial cable (Samsung CCVC, Pelco-C)
• DVD-RW, Smart phone support (Android / iOS) Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
• Enhanced Network Bandwidth up to 32Mbps
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Monitoring SmartViewer, Webviewer, SSM (CMS)
Platform Android, iOS
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 2, Search 1
Internal HDD Up to 4 SATA HDDs
External (e-SATA Interface) Up to 2 expansion bays (*Model : SVS-5R/5E)
Storage DVD Writer (Back up) Yes
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player), AVI
Security Password Protection 1 Admin, 10 Group, 10 User per 1 group
Data Authentication Watermark
Dimensions Unit : mm (inch)
Interface
VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
Monitors HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Spot Composite Digital spot (2CH) *Incldued OSD on screen, multi mode support (1CH)
Inputs / Output 16CH line in (Built-in 4CH, option : audio extension cable) / 1CH line out
Audio Compression G.711
2426.42846(6..9.887((29".9)7.2"7)2") Sampling Rate 8KHz 246.284 (6.9.87(29".)72")
22656.2256.(5.1220.((41140".)04.4"4)4") 265.226 (5.120.(4140".)44")
Alarm Inputs / Output Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),
Rating : 30V DC / 2A, 250V AC / 0.25A
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 for PTZ, Samsung system keyboard
44404.00.0((1177.3.23")2") Connections USB 440.0 (17.32") USB 2.0, 2 ports (Front)
eSATA440.0 (17.32") 2 External SATA ports
440.0 (17.32") Mouse, Remote controller
Application Support
RS-485 Protocol Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
Coax Protocol Samsung CCVC, Pelco-C
8 88.8.008((8.3.30.4(634".)466"")) General 88.08 (8.3.04(63".)46")
Electrical Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, Auto ranging
Power Consumption Max. 60W (With 1x HDD)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85% RH
Dimensions (WxHxD) 440.0 x 88.0 x 246.8mm (17.32" x 3.46" x 9.72")
Mechanical Weight (With hard disks) Approx. 5.2Kg (11.46 lb)
Rack Mount Kit 2ea
Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish,
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia,
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 178
