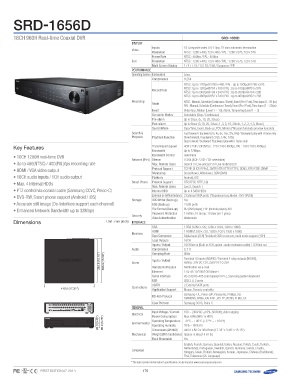

16CH 960H Real-time Coaxial DVR SRD-1656D
Display
Video Inputs 16 Composite video 0.5-1 Vpp, 75 ohm automatic termination
Resolution NTSC : 1280 x 480, 720 x 480 / PAL : 1280 x 576, 720 x 576
NTSC : 480fps / PAL : 400fps
Frame Rate NTSC : 1280 x 480, 720 x 480 / PAL : 1280 x 576, 720 x 576
1 / 4 / 7 / 9 / 13 / 16 / 16A / Sequence / PIP
Live Resolution
Linux
Multi Screen Display H.264
Performance
Operating System Embedded
Compression
Record Rate NTSC : Up to 120fps@1280 x 480 / PAL : Up to 100fps@1280 x 576
NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576
NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288
NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288
Recording Mode NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30 fps)
Search & PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
Playback Event
Overwrite Modes Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level 1 ~ 3)
Pre-alarm Selectable (Stop / Continuous)
Post-alarm Up to 30sec (5, 10, 20, 30sec)
Search Mode Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Date/Time, Event, Back up, POS, Motion (*All search include preview function)
Playback Function
Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward *Backward play with i-frame only
Key Features Transmission Speed 4CIF / 2CIF / CIF (NTSC : 120 / 240 / 480fps, PAL : 100 / 200 / 400fps)
• 16CH 1280H real-time DVR Bandwidth Up to 32Mbps
• Up to 480(NTSC) / 400(PAL)fps recording rate
• HDMI / VGA video output Bandwidth Control Selectable
• 16CH audio inputs / 1CH audio output
• Max. 4 internal HDDs Network (IPv4) Stream H.264 (4CIF / 2CIF / CIF selectable)
• PTZ control via coaxial cable (Samsung CCVC, Pelco-C)
• DVD-RW, Smart phone support (Android / iOS) Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
• Accurate still image (De-Interlace support each channel)
• Enhanced Network Bandwidth up to 32Mbps Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP
Monitoring SmartViewer, Webviewer, SSM (CMS)
Platform Android, iOS
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 2, Search 1
Internal HDD Up to 4 SATA HDDs
External (e-SATA Interface) 2 External SATA ports (*Expansion bay, Model : SVS-5R/5E)
Storage DVD Writer (Back up) Yes
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player), AVI
Security Password Protection 1 Admin, 10 Group, 10 User per 1 group
Data Authentication Watermark
Dimensions Unit : mm (inch)
Interface
VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
Monitors HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Spot Composite Digital spot (2CH) *Incldued OSD on screen, multi mode support (1CH)
Loop Outputs 16CH
Inputs / Output 16CH line in (Built-in 4CH, option : audio extension cable) / 1CH line out
Audio Compression G.711
33884.438.8(841.(58. (11155"5)..115"5)") Sampling Rate 8KHz 384.388(41.58. (115"5).15")
3 39955..3999((51.519.(551.9"5).5599"")) 395.399(51.59. (519"5).59")
Alarm Inputs / Output Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),
Rating : 30V DC / 2A, 250V AC / 0.25A
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 (Full duplex) for PTZ, Samsung system keyboard
USB USB 2.0, 2 ports
44404.00.0 ((1177.3.23")2") Connections eSATA 2 External SATA ports
Applica4t4i0o.0n(1S7u.3p2"p) ort Mouse, Remote controller
440.0 (17.32")
440.0 (17.32") Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
RS-485 Protocol
Coax Protocol Samsung CCVC, Pelco-C
General
888.8.00(8(833...044(6"3)6.4")6") Electrical Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, Auto ranging
959.5.99(9(533...977(8"3)8.7")8") Power Consumption Max. 60W (With 1x HDD)
88.08(83..04 (6"3).46")
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)95.99(53..97 (8"3).78")
Operating Humidity 20% ~ 85% RH
Dimensions (WxHxD) 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15")
Mechanical Weight (With hard disks) Approx. 6.6Kg (14.61 lb)
Rack Mountable Yes
Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish,
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia,
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)
* The latest product information / specification can be found at www.samsungsecurity.com
