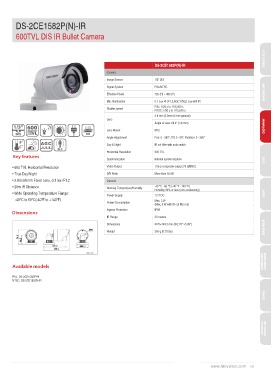

Page 131 - Catalog Hikvision 2014
P. 131
2CE1582P(N)-IR
600TVL DIS IR Bullet Camera
DS-2CE1582P(N)-IR PTZ DOME
Camera 1/3” DIS NETWORK
Image Sensor PAL/NTSC
1/3” 600 ICR Signal System 720 (H) × 480 (V) ANALOG
Effective Pixels 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR
DIS Min. Illumination PAL: 1/25 s to 1/15,000 s
Shutter speed NTSC: 1/30 s to 1/15,000 s
BLC 3.6 mm (2.8mm,6 mm optional)
Lens Angle of view: 68.4° (3.6 mm)
Key features M12 DVR
Lens Mount Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
• 600 TVL Horizontal Resolution Angle Adjustment IR cut filter with auto switch NVR
• True Day/Night Day & Night 600 TVL
• 2.8/3.6/6mm Fixed Lens, 0.1 lux /F1.2 Horizontal Resolution Internal synchronization
• 20m IR Distance Synchronization 1Vp-p composite output (75 Ω/BNC)
• Wide Operating Temperature Range: Video Output More than 52 dB
S/N Ratio
-40°C to 60°C(-40ºF to +140ºF) General -40 °C - 60 °C (-40 °F - 140 °F)
Working Temperature/Humidity Humidity 90% or less (non-condensing)
Dimensions Power Supply 12 V DC
Power Consumption Max. 2 W
Ingress Protection (Max. 5 W with IR cut filter on) ATM DVR
IR Range IP66
Dimensions 20 meters
Weight Φ70×149.5 mm (Φ2.76” ×5.89”)
360 g (0.79 lbs)
Available models ENCODER
DECODER
PAL: DS-2CE1582P-IR
NTSC: DS-2CE1582N-IR
CARD
NETWORK
STORAGE
www.hikvision.com 131
