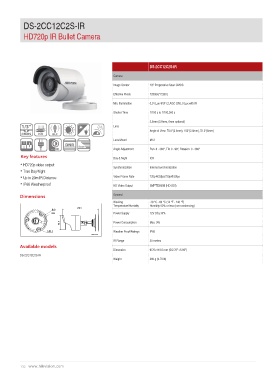

Page 132 - Catalog Hikvision 2014

2CC12C2S-IR

HD720p IR Bullet Camera

1/3” ICR BLC Camera DS-2CC12C2S-IR
Image Sensor
CMOS Effective Pixels 1/3” Progressive Scan CMOS
Min. Illumination 1280(H)*720(V)
Key features Scan Shutter Time 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
• HD720p video output 1/100 s to 1/100,000 s
• True Day/Night Unit: mm Lens 3.6mm (2.8mm, 6mm optional)
• Up to 20m IR Distance Angle of View: 78.8°(3.6mm), 103°(2.8mm), 51.2°(6mm)
• IP66 Weatherproof Lens Mount M12
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Dimensions Day & Night ICR
Synchronization Internal synchronization
Available models Video Frame Rate 720p@25fps/720p@30fps
HD Video Output SMPTE292M (HD-SDI)
DS-2CC12C2S-IR General
Working -10 °C - 60 °C (14 °F - 140 °F)
Temperature/Humidity Humidity 90% or less (non-condensing)
Power Supply 12V DC±10%
Power Consumption Max. 3W
Weather Proof Ratings IP66
IR Range 20 meters
Dimension Φ70×149.5 mm (Φ2.76” ×5.89”)
Weight 360 g (0.79 lb)
