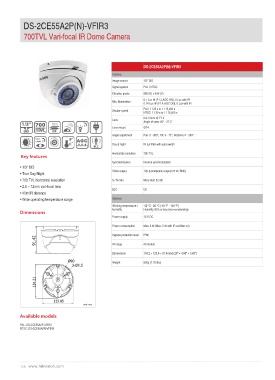

Page 128 - Catalog Hikvision 2014

2CE55A2P(N)-VFIR3

700TVL Vari-focal IR Dome Camera

1/3” 700 ICR Camera DS-2CE55A2P(N)-VFIR3
Image sensor
DIS Signal system 1/3" DIS
Effective pixels PAL / NTSC
Low Min. illumination 960 (H) × 496 (V)
Light 0.1 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter speed 0.14 Lux @ (F1.4,AGC ON), 0 Lux with IR
PAL: 1 / 25 s to 1 / 15,000 s
Lens NTSC: 1 / 30 s to 1 / 15,000 s
Lens mount 2.8-12mm @ F1.4
Angle adjustment Angle of view: 80° - 27.2°
Φ14
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

BLC Day & night IR cut filter with auto switch

Key features Horizontal resolution 700 TVL

• 1/3" DIS Synchronization Internal synchronization
• True Day/Night
• 700 TVL horizontal resolution Video output 1Vp-p composite output (75 Ω / BNC)
• 2.8 ~ 12mm vari-focal lens
• 40m IR distance S / N ratio More than 52 dB
• Wide operating temperature range
BLC On
Dimensions
General -40 °C - 60 °C (-40 °F - 140 °F)
Working temperature / Humidity 90% or less (non-condensing)
humidity 12 V DC
Power supply

Power consumption Max. 4 W (Max. 5 W with IR cut filter on)

Ingress protection level IP66

IR range 40 meters

Dimensions 134.2 × 123.9 × 91.4mm(5.28” × 4.88” × 3.60”)

Weight 800g (1.76l lbs)

Unit: mm

Available models

PAL: DS-2CE55A2P-VFIR3
NTSC: DS-2CE55A2N-VFIR3
