P. 127

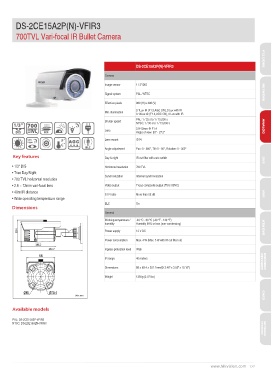

2CE15A2P(N)-VFIR3
700TVL Vari-focal IR Bullet Camera
DS-2CE15A2P(N)-VFIR3 PTZ DOME
Camera
Image sensor 1 / 3" DIS NETWORK
Signal system PAL / NTSC
1/3” 700 ICR Effective pixels 960 (H) × 496 (V) ANALOG
Min. illumination
DIS Shutter speed 0.1Lux @ (F1.2,AGC ON), 0 Lux with IR
Lens 0.14Lux @ (F1.4,AGC ON), 0 Lux with IR
Low Lens mount PAL: 1 / 25 s to 1 / 15,000 s
Light NTSC: 1 / 30 s to 1 / 15,000 s
2.8-12mm @ F1.4
Angle of view: 80° - 27.2°
Φ14
BLC Angle adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Key features Day & night IR cut filter with auto switch DVR
• 1/3" DIS Horizontal resolution 700 TVL
• True Day/Night
• 700 TVL horizontal resolution Synchronization Internal synchronization
• 2.8 ~ 12mm vari-focal lens
• 40m IR distance Video output 1Vp-p composite output (75 Ω / BNC)
• Wide operating temperature range
S / N ratio More than 52 dB NVR
Dimensions
BLC On
General -40 °C - 60 °C (-40 °F - 140 °F) ATM DVR
Working temperature / Humidity 90% or less (non-condensing)
humidity 12 V DC
Power supply
Power consumption Max. 4 W (Max. 5 W with IR cut filter on)
Ingress protection level IP66
IR range 40 meters ENCODER
DECODER
Dimensions 88 × 89.4 × 257.7mm(Φ 3.46” x 3.52” x 10.15”)
Weight 1350g (2.97 lbs)
Unit: mm CARD
Available models NETWORK
STORAGE
PAL: DS-2CE15A2P-VFIR3
NTSC: DS-2CE15A2N-VFIR3
www.hikvision.com 127
