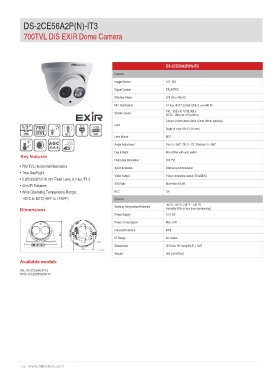

Page 126 - Catalog Hikvision 2014

2CE56A2P(N)-IT3

700TVL DIS EXIR Dome Camera

1/3” 700 BLC ICR Camera DS-2CE56A2P(N)-IT3
Image Sensor
DIS Signal System 1/3” DIS
Effective Pixels PAL/NTSC
Key features Min. Illumination 976 (H) × 496 (V)
Shutter speed 0.1 Lux @ (F1.2,AGC ON), 0 Lux with IR
• 700 TVL Horizontal Resolution PAL: 1/50 s to 1/100,000 s
• True Day/Night Lens NTSC: 1/60 s to 1/100,000 s
• 2.8/3.6/6/8/12/16 mm Fixed Lens, 0.1 lux /F1.2 3.6mm (2.8mm,6mm,8mm,12mm,16mm optional)
• 40m IR Distance Lens Mount Angle of view: 68.4° (3.6 mm)
• Wide Operating Temperature Range: Angle Adjustment M12
Day & Night Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
-40°C to 60°C(-40ºF to +140ºF) Horizontal Resolution IR cut filter with auto switch
Synchronization 700 TVL
Dimensions Video Output Internal synchronization
S/N Ratio 1Vp-p composite output (75 Ω/BNC)
BLC More than 62 dB
General On
Working Temperature/Humidity
Power Supply -40 °C - 60 °C (-40 °F - 140 °F)
Power Consumption Humidity 90% or less (non-condensing)
Ingress Protection 12 V DC
IR Range Max. 5 W
Dimensions IP66
Weight 40 meters
Φ114.6× 89.1mm(Φ4.5” × 3.5”)
300 g (0.66 lbs)

Available models

PAL: DS-2CE56A2P-IT3
NTSC: DS-2CE56A2N-IT3

126 www.hikvision.com
