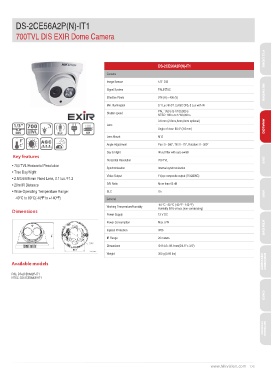

Page 125 - Catalog Hikvision 2014
P. 125
2CE56A2P(N)-IT1
700TVL DIS EXIR Dome Camera
DS-2CE56A2P(N)-IT1 PTZ DOME
Camera 1/3” DIS NETWORK
Image Sensor PAL/NTSC
1/3” 700 BLC ICR Signal System 976 (H) × 496 (V) ANALOG
Effective Pixels 0.1 Lux @ (F1.2,AGC ON), 0 Lux with IR
DIS Min. Illumination PAL: 1/50 s to 1/100,000 s
Shutter speed NTSC: 1/60 s to 1/100,000 s
Key features 3.6 mm (2.8mm,6mm,8mm optional) DVR
Lens Angle of view: 68.4° (3.6 mm)
• 700 TVL Horizontal Resolution M12 NVR
• True Day/Night Lens Mount Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
• 2.8/3.6/6/8 mm Fixed Lens, 0.1 lux /F1.2 Angle Adjustment IR cut filter with auto switch
• 20m IR Distance Day & Night 700 TVL
• Wide Operating Temperature Range: Horizontal Resolution Internal synchronization
Synchronization 1Vp-p composite output (75 Ω/BNC)
-40°C to 60°C(-40ºF to +140ºF) Video Output More than 62 dB
S/N Ratio On
Dimensions BLC
General -40 °C - 60 °C (-40 °F - 140 °F)
Working Temperature/Humidity Humidity 90% or less (non-condensing) ATM DVR
Power Supply 12 V DC
Power Consumption Max. 5 W ENCODER
Ingress Protection IP66 DECODER
IR Range 20 meters
Dimensions Φ114.6× 89.1mm(Φ4.5” × 3.5”)
Weight 300 g (0.66 lbs)
Available models
PAL: DS-2CE56A2P-IT1
NTSC: DS-2CE56A2N-IT1
CARD
NETWORK
STORAGE
www.hikvision.com 125
