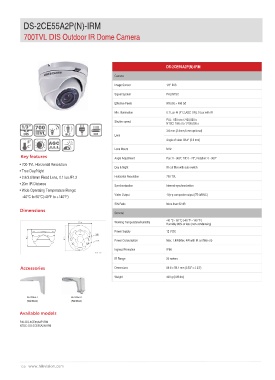

Page 120 - Catalog Hikvision 2014
P. 120
2CE55A2P(N)-IRM
700TVL DIS Outdoor IR Dome Camera
DS-2CE55A2P(N)-IRM
Camera
Image Sensor 1/3” DIS
Signal System PAL/NTSC
Effective Pixels 976 (H) × 496 (V)
1/3” 700 BLC Min. Illumination 0.1 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter speed PAL: 1/50 s to 1/100,000 s
DIS NTSC: 1/60 s to 1/100,000 s
ICR Lens 3.6 mm (2.8mm,6 mm optional)
Angle of view: 68.4° (3.6 mm)
Key features Lens Mount M12
• 700 TVL Horizontal Resolution Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
• True Day/Night Day & Night IR cut filter with auto switch
• 2.8/3.6/6mm Fixed Lens, 0.1 lux /F1.2 Horizontal Resolution 700 TVL
• 20m IR Distance Synchronization Internal synchronization
• Wide Operating Temperature Range: Video Output 1Vp-p composite output (75 Ω/BNC)
S/N Ratio More than 62 dB
-40°C to 60°C(-40°F to +140°F) General
Working Temperature/Humidity -40 °C - 60 °C (-40 °F - 140 °F)
Dimensions Power Supply Humidity 90% or less (non-condensing)
12 V DC
Power Consumption Max. 1.8W(Max. 4W with IR cut filter on)
Ingress Protection IP66
IR Range 20 meters
Accessories Dimensions 89.6 × 59.1 mm (3.53” × 2.33”)
Weight 400 g (0.88 lbs)
DS-1229ZJ-1 DS-1239ZJ-1
(Wall Mount) (Wall Mount)
Available models
PAL:DS-2CE55A2P-IRM
NTSC :DS-2CE55A2N-IRM
120 www.hikvision.com
