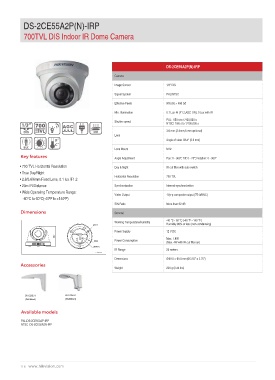

Page 118 - Catalog Hikvision 2014

2CE55A2P(N)-IRP

700TVL DIS Indoor IR Dome Camera

DS-2CE55A2P(N)-IRP

Camera

Image Sensor 1/3” DIS

Signal System PAL/NTSC

Effective Pixels 976 (H) × 496 (V)

Min. Illumination 0.1 Lux @ (F1.2,AGC ON), 0 Lux with IR

1/3” 700 Shutter speed PAL: 1/50 s to 1/100,000 s
ICR NTSC: 1/60 s to 1/100,000 s
DIS 3.6 mm (2.8mm,6 mm optional)
Lens
Angle of view: 68.4° (3.6 mm)

BLC Lens Mount M12
Angle Adjustment Pan: 0 - 360°; Tilt: 0 - 75°; Rotation: 0 - 360°
Key features

• 700 TVL Horizontal Resolution Day & Night IR cut filter with auto switch
• True Day/Night Horizontal Resolution 700 TVL
• 2.8/3.6/6mm Fixed Lens, 0.1 lux /F1.2 Synchronization Internal synchronization
• 20m IR Distance Video Output 1Vp-p composite output (75 Ω/BNC)
• Wide Operating Temperature Range: S/N Ratio More than 62 dB

-40°C to 60°C(-40ºF to +140ºF)

Dimensions General

Working Temperature/Humidity -40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply 12 V DC

Power Consumption Max. 1.8W
(Max. 4W with IR cut filter on)

IR Range 20 meters

Accessories Dimensions Φ89.5 × 69.8 mm(Φ3.52” × 2.75”)
Weight 200 g (0.44 lbs)

DS-1229ZJ-1 DS-1239ZJ-1
(Wall Mount) (Wall Mount)

Available models

PAL:DS-2CE55A2P-IRP
NTSC :DS-2CE55A2N-IRP
