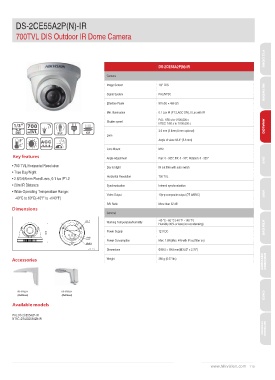

2CE55A2P(N)-IR

700TVL DIS Outdoor IR Dome Camera

DS-2CE55A2P(N)-IR PTZ DOME

Camera

Image Sensor 1/3” DIS NETWORK

Signal System PAL/NTSC

Effective Pixels 976 (H) × 496 (V)

1/3” 700 BLC Min. Illumination 0.1 Lux @ (F1.2,AGC ON), 0 Lux with IR ANALOG
Shutter speed PAL: 1/50 s to 1/100,000 s
DIS ICR Lens NTSC: 1/60 s to 1/100,000 s
3.6 mm (2.8mm,6 mm optional)

Angle of view: 68.4° (3.6 mm)

Key features Lens Mount M12 DVR
Angle Adjustment Pan: 0 - 355°; Tilt: 0 - 90°; Rotation: 0 - 355°
• 700 TVL Horizontal Resolution Day & Night IR cut filter with auto switch NVR
• True Day/Night Horizontal Resolution 700 TVL
• 2.8/3.6/6mm Fixed Lens, 0.1 lux /F1.2 Synchronization Internal synchronization
• 20m IR Distance Video Output 1Vp-p composite output (75 Ω/BNC)
• Wide Operating Temperature Range: S/N Ratio More than 62 dB
General
-40°C to 60°C(-40°F to +140°F) Working Temperature/Humidity -40 °C - 60 °C (-40 °F - 140 °F)
Power Supply Humidity 90% or less (non-condensing)
Dimensions 12 V DC

ATM DVR

Power Consumption Max. 1.8W(Max. 4W with IR cut filter on)

Dimensions Φ89.5 × 69.8 mm(Φ3.52” × 2.75”)

Accessories Weight 260 g (0.57 lbs) ENCODER
DECODER

DS-1229ZJ-1 DS-1239ZJ-1 CARD
(Wall Mount) (Wall Mount)

Available models

PAL:DS-2CE55A2P-IR
NTSC :DS-2CE55A2N-IR

NETWORK
STORAGE
