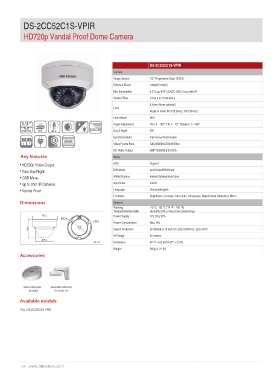

Page 134 - Catalog Hikvision 2014

2CC52C1S-VPIR

HD720p Vandal Proof Dome Camera

1/3” ICR BLC Scan Camera DS-2CC52C1S-VPIR
Image Sensor
CMOS Unit: mm Effective Pixels 1/3” Progressive Scan CMOS
Min. Illumination 1280(H)*720(V)
Key features Shutter Time 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
1/100 s to 1/100,000 s
• HD720p Video Output Lens 3.6mm (6mm optional)
• True Day/Night Angle of View: 80.9°(3.6mm), 54.3°(6mm)
• OSD Menu Lens Mount M12
• Up to 20m IR Distance Angle Adjustment Pan: 0 - 180°, Tilt: 0 - 75°, Rotation: 0 - 360°
• Vandal Proof Day & Night ICR
Synchronization Internal synchronization
Dimensions Video Frame Rate 720p@25fps/720p@30fps
HD Video Output SMPTE292M (HD-SDI)
Menu
AGC Support
D/N Mode Auto/Color/BW/Smart
White Balance Indoor/Outdoor/Auto/User
Anti-flicker On/off
Language Chinese/English
Functions Brightness, Contrast, Color Gain, Sharpness, Digital Noise Reduction, Mirror
General
Working -10 °C - 60 °C (14 °F - 140 °F)
Temperature/Humidity Humidity 90% or less (non-condensing)
Power Supply 12V DC±10%
Power Consumption Max. 3W
Impact Protection IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10
IR Range 20 meters
Dimension Φ111 × 82.4(Φ4.37” × 3.24”)
Weight 550g (1.21 lb)

Accessories

Inclined ceiling mount Indoor/outdoor wall mount
DS-1259ZJ DS-1272ZJ-110

Available models

PAL: DS-2CC52C1S-VPIR
