P. 160

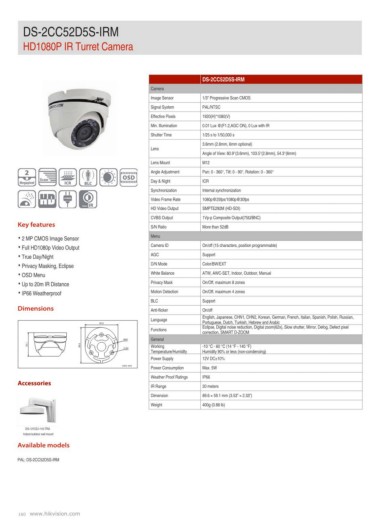

2CC52D5S-IRM
HD1080P IR Turret Camera
2 Scan ICR BLC OSD Camera DS-2CC52D5S-IRM
Image Sensor
Megapixel Unit: mm Signal System 1/3" Progressive Scan CMOS
Effective Pixels PAL/NTSC
Key features Min. Illumination 1920(H)*1080(V)
Shutter Time 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
• 2 MP CMOS Image Sensor 1/25 s to 1/50,000 s
• Full HD1080p Video Output Lens 3.6mm (2.8mm, 6mm optional)
• True Day/Night Angle of View: 80.9°(3.6mm), 103.5°(2.8mm), 54.3°(6mm)
• Privacy Masking, Eclipse Lens Mount M12
• OSD Menu Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
• Up to 20m IR Distance Day & Night ICR
• IP66 Weatherproof Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
Dimensions HD Video Output SMPTE292M (HD-SDI)
CVBS Output 1Vp-p Composite Output(75Ω/BNC)
Accessories S/N Ratio More than 52dB
Menu
DS-1272ZJ-110-TRS Camera ID On/off (15 characters, position programmable)
Indoor/outdoor wall mount AGC Support
D/N Mode Color/BW/EXT
Available models White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
Privacy Mask On/Off, maximum 8 zones
PAL: DS-2CC52D5S-IRM Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/off
Language English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,
Functions Portuguese, Dutch, Turkish, Hebrew and Arabic
General Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel
Working correction, SMART D-ZOOM
Temperature/Humidity
Power Supply -10 °C - 60 °C (14 °F - 140 °F)
Power Consumption Humidity 90% or less (non-condensing)
Weather Proof Ratings 12V DC±10%
IR Range Max. 5W
Dimension IP66
Weight 20 meters
89.6 × 59.1 mm (3.53” × 2.33”)
400g (0.88 lb)
160 www.hikvision.com
