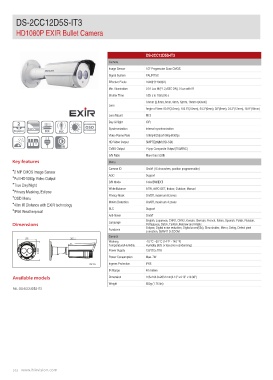

Page 162 - Hikvision Products Catalog 2015
P. 162
2CC12D5S-IT3
HD1080P EXIR Bullet Camera
2 Scan ICR BLC OSD Camera DS-2CC12D5S-IT3
Image Sensor
Megapixel Unit: mm Signal System 1/3" Progressive Scan CMOS
Effective Pixels PAL/NTSC
Key features Min. Illumination 1920(H)*1080(V)
Shutter Time 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
•2 MP CMOS Image Sensor 1/25 s to 1/50,000 s
•Full HD1080p Video Output Lens 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)
•True Day/Night Angle of View: 80.9°(3.6mm), 103.5°(2.8mm), 54.3°(6mm), 38°(8mm), 24.3°(12mm), 18.9°(18mm)
•Privacy Masking, Eclipse Lens Mount M12
•OSD Menu Day & Night ICR
•40m IR Distance with EXIR technology Synchronization Internal synchronization
•IP66 Weatherproof Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output SMPTE292M (HD-SDI)
Dimensions CVBS Output 1Vp-p Composite Output(75Ω/BNC)
S/N Ratio More than 52dB
Available models Menu
Camera ID On/off (15 characters, position programmable)
PAL: DS-2CC12D5S-IT3 AGC Support
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
Privacy Mask On/Off, maximum 8 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/off
Language English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,
Functions Portuguese, Dutch, Turkish, Hebrew and Arabic
General Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel
Working correction, SMART D-ZOOM
Temperature/Humidity
Power Supply -10 °C - 60 °C (14 °F - 140 °F)
Power Consumption Humidity 90% or less (non-condensing)
Ingress Protection 12V DC±10%
IR Range Max. 7W
Dimension IP66
Weight 40 meters
105×104.8×263.1mm(4.13” ×4.13” ×10.36”)
800g (1.76 lbs)
162 www.hikvision.com
