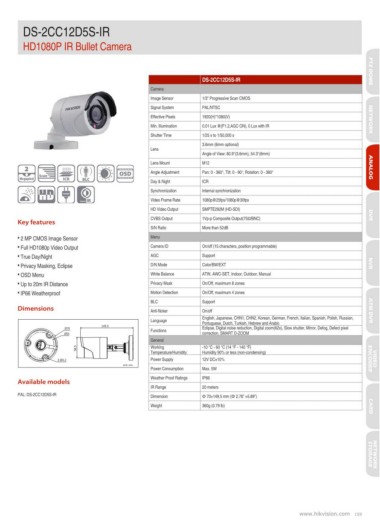

2CC12D5S-IR
HD1080P IR Bullet Camera
DS-2CC12D5S-IR PTZ DOME
Camera 1/3" Progressive Scan CMOS NETWORK
Image Sensor PAL/NTSC
2 Scan ICR BLC OSD Signal System 1920(H)*1080(V) ANALOG
Effective Pixels 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Megapixel Unit: mm Min. Illumination 1/25 s to 1/50,000 s
Shutter Time 3.6mm (6mm optional)
Key features Angle of View: 80.9°(3.6mm), 54.3°(6mm) DVR
Lens M12
• 2 MP CMOS Image Sensor Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° NVR
• Full HD1080p Video Output Lens Mount ICR
• True Day/Night Angle Adjustment Internal synchronization ATM DVR
• Privacy Masking, Eclipse Day & Night 1080p@25fps/1080p@30fps
• OSD Menu Synchronization SMPTE292M (HD-SDI)
• Up to 20m IR Distance Video Frame Rate 1Vp-p Composite Output(75Ω/BNC)
• IP66 Weatherproof HD Video Output More than 52dB
CVBS Output
Dimensions S/N Ratio On/off (15 characters, position programmable)
Menu Support
Camera ID Color/BW/EXT VIDEO
AGC ATW, AWC-SET, Indoor, Outdoor, Manual ENCODER
D/N Mode On/Off, maximum 8 zones
Available models White Balance On/Off, maximum 4 zones
Privacy Mask Support
PAL: DS-2CC12D5S-IR Motion Detection On/off
BLC English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,
Anti-flicker Portuguese, Dutch, Turkish, Hebrew and Arabic CARD
Language Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel
Functions correction, SMART D-ZOOM
General
Working -10 °C - 60 °C (14 °F - 140 °F)
Temperature/Humidity Humidity 90% or less (non-condensing)
Power Supply 12V DC±10%
Power Consumption Max. 5W
Weather Proof Ratings IP66
IR Range 20 meters
Dimension Φ 70×149.5 mm (Φ 2.76” ×5.89”)
Weight 360g (0.79 lb)
NETWORK
STORAGE
www.hikvision.com 159
