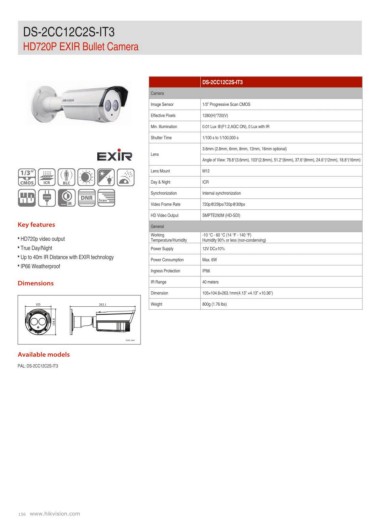

Page 156 - Hikvision Products Catalog 2015

2CC12C2S-IT3

HD720P EXIR Bullet Camera

1/3” ICR BLC Camera DS-2CC12C2S-IT3
Image Sensor
CMOS Effective Pixels 1/3” Progressive Scan CMOS
Min. Illumination 1280(H)*720(V)
Scan Shutter Time 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
1/100 s to 1/100,000 s
Key features Lens 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)
Angle of View: 78.8°(3.6mm), 103°(2.8mm), 51.2°(6mm), 37.6°(8mm), 24.6°(12mm), 18.8°(16mm)
• HD720p video output Lens Mount M12
• True Day/Night Day & Night ICR
• Up to 40m IR Distance with EXIR technology Synchronization Internal synchronization
• IP66 Weatherproof Video Frame Rate 720p@25fps/720p@30fps
HD Video Output SMPTE292M (HD-SDI)
Dimensions General
Working -10 °C - 60 °C (14 °F - 140 °F)
Temperature/Humidity Humidity 90% or less (non-condensing)
Power Supply 12V DC±10%
Power Consumption Max. 6W
Ingress Protection IP66
IR Range 40 meters
Dimension 105×104.8×263.1mm(4.13” ×4.13” ×10.36”)
Weight 800g (1.76 lbs)

Unit: mm

Available models

PAL: DS-2CC12C2S-IT3

156 www.hikvision.com
