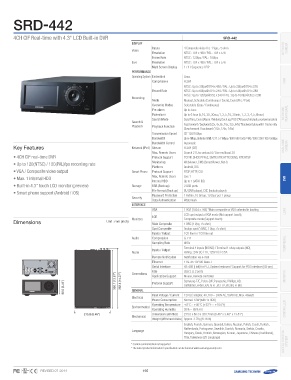

4CH CIF Real-time with 4.3" LCD Built-in DVR SRD-442
Display Inputs 4 Composite video 0.5-1 Vpp, 75 ohm NETWORK
Video Resolution NTSC : 704 x 480 / PAL : 704 x 576 Camera
Frame Rate NTSC : 120fps / PAL : 100fps
Live Resolution NTSC : 704 x 480 / PAL : 704 x 576
Multi Screen Display 1 / 4 / Sequence / PIP
Performance Linux NVR
Operating System Embedded
Compression H.264
Recording Record Rate NTSC : Up to 30fps@704 x 480 / PAL : Up to 25fps@704 x 576
NTSC : Up to 60fps@704 x 240 / PAL : Up to 50fps@704 x 288
Mode NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288 NETWORK
Overwrite Modes PERIPHERAL
Manual, Schedule (Continuous / Event), Event (Pre / Post)
Selectable (Stop / Continuous)
Search & Pre-alarm Up to 5sec
Playback Post-alarm Up to 6 hour (5,10, 20, 30sec,1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search Mode Date/Time, Event (Alarm / Motion), Back up, POS (*All search include preview function)
Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Transmission Speed CIF 120/100fps
Key Features Bandwidth Up to 4Mbps, Unlimited (4M) / 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps Analogue
Bandwidth Control Automatic Camera
• 4CH CIF real-time DVR Network (IPv4) Stream H.264 (CIF)
• Up to 120(NTSC) / 100(PAL)fps recording rate
• VGA / Composite video output Max. Remote Users Search 2 / Live unicast 4 / Live multicast 20
• Max. 1 internal HDD Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
• Built-in 4.3" touch LCD monitor (preview)
• Smart phone support (Android / iOS) Monitoring Webviewer, CMS (SmartViewer, Net-I)
Platform Android, iOS
Smart Phone Protocol Support RTSP, HTTP, CGI
Max. Remote Users Live 1 DVR
Storage Internal HDD Up to 1 SATA HDD
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player)
Security Password Protection 1 Admin, 10 Group, 10 User per 1 group
Data Authentication Watermark
Interface
350.7 (13.81") VGA 1 VGA (1024 x 768) *Main composite or VGA selected in booting LENS
362.4 (14.27")
Dimensions Unit : mm (inch) Monitors LCD LCD spot output at VGA mode (Not support touch),
Composite mode (Support touch)
215.0 (8.46") Main Composite
Spot Composite 1 BNC (1 Vpp, 75 ohm)
Analgo spot (1 BNC, 1 Vpp, 75 ohm)
Audio Inputs / Output 1CH line in / 1CH line out PERIPHERAL
Compression G.711
Sampling Rate 8KHz
Alarm Inputs / Output Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs (NO),
Remote Notification Rating : 24V DC / 1A, 125V AC / 0.5A
Notification via e-mail
8888..00 ((33..4466")") Connections Ethernet 1 RJ-45 10/100 Base-T MONITOR
335500..77 ((1133..881"1)") Serial Interface RS-485 (Half) for PTZ, System keyboard *Support for POS interface (VSI-pro)
336622..44 ((1144..227"7)") USB USB 2.0, 2 ports
Application Support Mouse, Remote controller
Protocol Support Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO
General Input Voltage / Current 12V DC adaptor, 4A,100 ~ 240V AC, 50/60Hz, Max. 48watt
Electrical Power Consumption Normal. 12W (with 1x HDD)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F) CONTROLLER
Operating Humidity 20% ~ 85% RH
221155..00 ((88..4466")") Mechanical Dimensions (WxHxD) 215.0 x 88.0 x 350.7mm (8.46" x 3.46" x 13.81")
Weight (With hard disks) Approx. 3.7Kg (8.16 lb)
Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Access Control
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia, System
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)
88.0 (3.46") * Coaxial communication not supported
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 195
