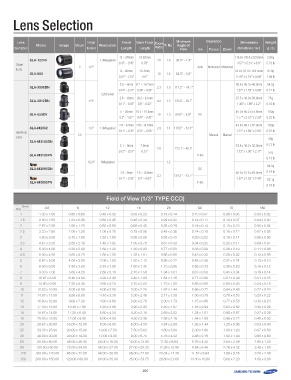

Page 200 - Catalog Samsung 2014
P. 200
s Selection
Lens Model Image Mount Image Resolution Focal Back Focal Zoom F. No Minimum Operation Dimensions Weight
Description Format Length Length Ratio Angle of Iris Focus Zoom (WxHxD)mm / inch (g / lb)
View
SLA-12240 12 ~ 240mm 19.82mm 20 1.6 38.9° ~ 1.9° 116.0 x 135.0 x 223.5mm 2.6Kg
SLA-880 1.3Megapixel 4.57" x 5.31" x 8.8" 5.73 lb
Zoom
Lens 0.47" ~ 9.45" 0.78"
C 1/2" Auto Motorized Motorized
8 ~ 80mm 15.3mm 10 1.2 54.3° ~ 5.8° 70.0 x 81.0 x 123.5mm 670g
0.31" ~ 3.15" 0.6" 2.76" x 3.19" x 4.86" 1.48 lb
SLA-3580DN 3.5 ~ 8mm 8.7 ~ 14.7mm 1.0 111.2° ~ 44.7° 38.6 x 45.3 x 46.0mm 54.5g
2.3 1.52" x 1.78" x 4.86" 0.12 lb
0.14" ~ 0.31" 0.34" ~ 0.58" 37.5 x 48.0 x 56.0mm 71g
1.48" x 1.89" x 2.2" 0.16 lb
520K pixel
SLA-2812DN 2.8 ~ 12mm 20.2 ~ 8.1mm
1/3" 4.2 1.3 133.0˚ ~ 29.7˚
0.11" ~ 0.47" 0.8" ~ 0.32"
SLA-550DV 5 ~ 50mm 10.5 ~ 10.6mm 1.3 64.0° ~ 6.9° DC 45.0 x 56.2 x 57.8mm 100g
10 1.77" x 2.21" x 2.28" 0.22 lb
0.2" ~ 1.97" 0.41" ~ 0.42"
SLA-M2882 1/3" 1.3Megapixel 2.8 ~ 8.2mm 7.97 ~ 14.12mm 2.9 1.4 116.5° ~ 42.4° 43.8 x 48.1 x 52.0mm 100g
SLA-M3180DN 1.72" x 1.89" x 2.05" 0.22 lb
Varifocal 0.11" ~ 0.32" 0.31" ~ 0.56"
Lens 59g
CS Manual Manual
3.1 ~ 8mm 7.8mm 2.6 123.1˚ ~ 48.3˚ 43.8 x 48.2 x 55.0mm 0.13 lb
0.12" ~ 0.31" 0.31" 1.2 1.72" x 1.90" x 2.17"
57g
SLA-M3180PN 134.2° ~ 42.7° P-Iris 0.13 lb
New DC
SLA-M2890DN 1/2.8" 3Megapixel P-Iris
New
SLA-M2890PN 2.8 ~ 9mm 7.5 ~ 15.9mm 40.0 x 51.5 x 63.0mm 84.0g
3.2 1.57" x 2.03" x 2.48" 0.19 lb
0.11" ~ 0.35" 0.3" ~ 0.63" 82.1g
0.18 lb
Field of View (1/3" TYPE CCD)
D(m ) F(mm) 3.6 6 12 16 25 50 75 180
1
1.5 1.33 x 1.00 0.80 x 0.60 0.40 x 0.30 0.30 x 0.23 0.19 x 0.14 0.10 x 0.07 0.06 x 0.05 0.03 x 0.02
2 2.00 x 1.50 1.20 x 0.90 0.60 x 0.45 0.45 x 0.34 0.29 x 0.22 0.14 x 0.11 0.10 x 0.07 0.04 x 0.03
2.5 2.67 x 2.00 1.60 x 1.20 0.80 x 0.60 0.60 x 0.45 0.38 x 0.29 0.19 x 0.14 0.13 x 0.10 0.05 x 0.04
3 3.33 x 2.50 2.00 x 1.50 1.00 x 0.75 0.75 x 0.56 0.48 x 0.36 0.24 x 0.18 0.16 x 0.12 0.07 x 0.05
3.5 4.00 x 3.00 2.40 x 1.80 1.20 x 1.90 0.90 x 0.68 0.58 x 0.43 0.29 x 0.22 0.19 x 0.14 0.08 x 0.06
4 4.67 x 3.50 2.80 x 2.10 1.40 x 1.05 1.05 x 0.79 0.67 x 0.50 0.34 x 0.25 0.22 x 0.17 0.09 x 0.07
4.5 5.33 x 4.00 3.20 x 2.40 1.60 x 1.20 1.20 x 0.90 0.77 x 0.58 0.38 x 0.29 0.26 x 0.19 0.11 x 0.08
5 6.00 x 4.50 3.60 x 2.70 1.80 x 1.35 1.35 x 1.01 0.86 x 0.65 0.43 x 0.32 0.29 x 0.22 0.12 x 0.09
6 6.67 x 5.00 4.00 x 3.00 2.00 x 1.50 1.50 x 1.13 0.96 x 0.72 0.48 x 0.36 0.32 x 0.24 0.13 x 0.10
7 8.00 x 6.00 4.80 x 3.60 2.40 x 1.80 1.80 x 1.35 1.15 x 0.86 0.58 x 0.43 0.38 x 0.29 0.16 x 0.12
8 9.33 x 7.00 5.60 x 4.20 2.80 x 2.10 2.10 x 1.58 1.34 x 1.01 0.67 x 0.50 0.45 x 0.34 0.19 x 0.14
9 10.67 x 8.00 6.40 x 4.80 3.20 x 2.40 2.40 x 1.80 1.54 x 1.15 0.77 x 0.58 0.51 x 0.38 0.21 x 0.16
10 12.00 x 9.00 7.20 x 5.40 3.60 x 2.70 2.70 x 2.03 1.73 x 1.30 0.86 x 0.65 0.58 x 0.43 0.24 x 0.18
11 13.33 x 10.00 8.00 x 6.00 4.00 x 3.00 3.00 x 2.25 1.92 x 1.44 0.96 x 0.72 0.64 x 0.48 0.27 x 0.20
12 14.67 x 11.00 8.80 x 6.60 4.40 x 3.30 3.30 x 2.48 2.11 x 1.58 1.06 x 0.79 0.70 x 0.53 0.29 x 0.22
13 16.00 x 12.00 9.60 x 7.20 4.80 x 3.60 3.60 x 2.70 2.30 x 1.73 1.15 x 0.86 0.77 x 0.58 0.32 x 0.24
14 17.33 x 13.00 10.40 x 7.80 5.20 x 3.90 3.90 x 2.93 2.50 x 1.87 1.25 x 0.94 0.83 x 0.62 0.35 x 0.26
15 18.67 x 14.00 11.20 x 8.40 5.60 x 4.20 4.20 x 3.15 2.69 x 2.02 1.34 x 1.01 0.90 x 0.67 0.37 x 0.28
20 20.00 x 15.00 12.00 x 9.00 6.00 x 4.50 4.50 x 3.38 2.88 x 2.16 1.44 x 1.08 0.96 x 0.72 0.40 x 0.30
25 26.67 x 20.00 16.00 x 12.00 8.00 x 6.00 6.00 x 4.50 3.84 x 2.88 1.92 x 1.44 1.28 x 0.96 0.53 x 0.40
30 33.33 x 25.00 20.00 x 15.00 10.00 x 7.50 7.50 x 5.63 4.80 x 3.60 2.40 x 1.80 1.60 x 1.20 0.67 x 0.50
60 40.00 x 30.00 24.00 x 18.00 12.00 x 9.00 9.00 x 6.75 5.76 x 4.32 2.88 x 2.16 1.92 x 1.44 0.80 x 0.60
90 80.00 x 60.00 48.00 x 36.00 24.00 x 18.00 18.00 x 13.50 11.52 x 8.64 5.76 x 4.32 3.84 x 2.88 1.60 x 1.20
120 120.00 x 90.00 72.00 x 54.00 36.00 x 27.00 27.00 x 20.25 17.28 x 12.96 8.64 x 6.48 5.76 x 4.32 2.40 x 1.80
150 160.00 x 120.00 96.00 x 72.00 48.00 x 36.00 36.00 x 27.00 23.04 x 17.28 11.52 x 8.64 7.68 x 5.76 3.20 x 2.40
200.00 x 150.00 120.00 x 90.00 60.00 x 45.00 45.00 x 33.75 28.80 x 21.60 14.40 x 10.80 9.60 x 7.20 4.00 x 3.00
200
