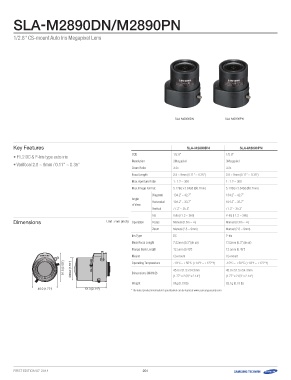

Page 204 - Catalog Samsung 2014

-M2890DN/M2890PN

1/2.8" CS-mount Auto Iris Megapixel Lens

SLA-M2890DN SLA-M2890PN

Key Features SLA-M2890DN SLA-M2890PN
• F1.2 DC & P-Iris type auto iris
• Varifocal 2.8 ~ 9mm / 0.11" ~ 0.35" CCD 1/2.8" 1/2.8"

Dimensions Resolution 3Megapixel 3Megapixel

Zoom Ratio 3.2x 3.2x

Focal Length 2.8 ~ 9mm (0.11" ~ 0.35") 2.8 ~ 9mm (0.11" ~ 0.35")

Max. Aperture Ratio 1 : 1.2 ~ 360 1 : 1.2 ~ 360

Max. Image Format 5.12(H) x 3.84(V) (Ø6.7mm) 5.12(H) x 3.84(V) (Ø6.7mm)

Angle Diagonal 134.2˚ ~ 42.7˚ 134.2˚ ~ 42.7˚
of View Horizontal 104.2˚ ~ 33.7˚ 104.2˚ ~ 33.7˚
Vertical 77.2˚ ~ 25.3˚ 77.2˚ ~ 25.3˚

Unit : mm (inch) Operation Iris Auto (F1.2 ~ 360) P-Iris (F1.2 ~ 360)
Focus Manual (0.3m ~ ∞) Manual (0.3m ~ ∞)
Zoom Manual (2.8 ~ 9mm) Manual (2.8 ~ 9mm)

Iris Type DC P-Iris

Back Focal Length 7.52mm (0.3") (In air) 7.52mm (0.3") (In air)

Flange Back Length 12.5mm (0.49") 12.5mm (0.49")

Mount CS-mount CS-mount

515.1.55( (2.2.0033"")) Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F) -10°C ~ +50°C (+14°F ~ +122°F)
ØØ4400..0 ((1.5577")")
Dimensions (WxHxD) 45.0 x 51.5 x 54.3mm 45.0 x 51.5 x 54.3mm
(1.77" x 2.03" x 2.14") (1.77" x 2.03" x 2.14")

Weight 84g (0.19 lb) 82.1g (0.18 lb)

4455.0.0(1(1..7777") 5544.3.3((22..114") * The latest product information / specification can be found at www.samsungsecurity.com

FIRST EDITION 07-2014 204
