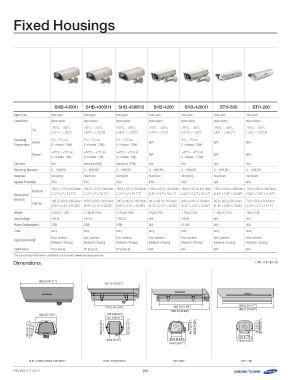

Fixed Housings
SHB-4300H SHB-4300H1 SHB-4300H2 SHB-4200 SHB-4200H STH-500 STH-200
Open Type Side open Side open Side open Side open Side open Side open Side open
Cable Entry Nylon gland Nylon gland Nylon gland Nylon gland Nylon gland Nylon gland Nylon gland
Set -35°C ~ +50°C -50°C ~ +50°C -50°C ~ +50°C -15°C ~ +45°C -35°C ~ +50°C -20°C ~ +49°C -15°C ~ +50°C
(-31°F ~ +122°) (-58°F ~ +122°F) (-58°F ~ +122°F) (+5°F ~ +113°) (-31°F ~ +122°) (-4°F ~ +120.2°) (+5°F ~ +122°F)
Operating Heater 5°C ± 5°C on 5°C ± 5°C on 5°C ± 5°C on N/A 4°C ± 3°C on N/A N/A
Temperature (1 x heater : 20W) (2 x heater : 20W) (2 x heater : 20W) (1 x heater : 20W)
Blower +45°C ~ +5°C on +45°C ~ +5°C on +45°C ~ +5°C on N/A +45°C ~ +5°C on N/A N/A
(1 x blower : 2W) (1 x blower : 2W) (1 x blower : 5W) (1 x blower : 1.6W)
Defroster N/A Always on (8W) Always on (10W) N/A N/A N/A N/A
Operating Humidity 0 ~ 90% RH 0 ~ 90% RH 0 ~ 90% RH 0 ~ 90% RH 0 ~ 90% RH 0 ~ 90% RH 0 ~ 90% RH
Materials Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Ingress Protection IP66 IP66 IP66 IP66 IP66 N/A N/A
Dimensions External 184.0 x 127.0 x 460.0mm 184.0 x 127.0 x 460.0mm 184.0 x 127.0 x 460.0mm 148.0 x 107.0 x 421.0mm 148.0 x 107.0 x 421.0mm 144.0 x 100.0 x 500.0mm 118.0 x 92.0 x 405.0mm
(WxHxD) Internal (7.24" x 5" x 18.11") (7.24" x 5" x 18.11") (7.24" x 5" x 18.11") (5.8" x 4.21" x 16.57") (5.83" x 4.21" x 16.57") (5.67" x 3.94" x 19.69") (4.65" x 3.62" x 15.94")
100.0 x 80.0 x 383.0mm 100.0 x 80.0 x 383.0mm 100.0 x 80.0 x 383.0mm 84.0 x 69.0 x 319.0mm 84.0 x 69.0 x 319.0mm 88.0 x 68.0 x 383.0mm 70.0 x 56.0 x 360.0mm
(3.94" x 3.15" x 15.08") (3.94" x 3.15" x 15.08") (3.94" x 3.15" x 15.08") (3.31" x 2.72" x 12.56") (3.31" x 2.72" x 12.56") (3.46" x 2.68" x 15.08") (2.76" x 2.2" x 14.17")
Weight 3.5Kg (7.72 lb) 3.7Kg (8.16 lb) 3.7Kg (8.16 lb) 1Kg (2.2 lb) 1.1Kg (2.3 lb) 1.5Kg (3.31 lb) 1Kg (2.2 lb)
Input Voltage 24V AC 24V AC 230V AC N/A 24V AC N/A N/A
Power Consumption 25W 55W 55W N/A 21.6W N/A N/A
Color Ivory Ivory Ivory Ivory Ivory Ivory Ivory
Applicable Model Box Cameras Box Cameras Box Cameras Box Cameras Box Cameras Box Cameras Box Cameras
(Network / Analog) (Network / Analog) (Network / Analog) (Network / Analog) (Network / Analog) (Network / Analog) (Network / Analog)
Certification CE (Class A) CE (Class A) CE (Class A) N/A N/A N/A N/A
* The latest product information / specification can be found at www.samsungsecurity.com
Dimensions Unit : mm (inch)
84.0 (7.24") 46046.00.0(1(188..1111"") ) 148.0 (5.83") 424121.0.0 ((1166.5.57"7) ")
142.6 (5.61")
69.0 (2.72") 107.0 (4.21") 68.0 (2.68") 56.0 (2.2")
100.0 (3.94") 92.0 (3.62")
84.0 (3.31") 31361.60.0(1(122..44844"8)".0) (5.67") 383383.0.0((1155..00878"0)".0) (2.76") 363060.0.0 ((1144..1177")")
505000.0.0((1199..6699")"11) 8.0 (4.65") 404055..00 ((1155.9.94"4)")
144.0 (5.67")
18148.40.0((77..2244"") ) 460.0 (18.11") 421.0 (16.57") 7700..00 ((22..7766")")
14184.80.0(5(5..8833"") ) 383.0 (151.011818"8)..00 (4..6655")")
141242.6.6 ((55..6611")") 6688..00 ((22..668"8)")
110077..00 ((4.4.212")1") 110000..00 ((33..994"4)") 500.0 (19.69") 5566..00 ((2.2.2"2)")
15155.5.55((66..1122")") 69.690. (0 (2.2.7722"")) 9 92.2.00((33.662"2)")
85.855.(53(.3.3377"")) STH-200
316.0 (12.44") 8888.0.0((35..6476"") )
SHB-4300H/4300H1/4300H2 848.40.0(3(3.3.311"")) 141444.0.0 (5..6677")")
REVISED 07-2014 SHB-4200/4200H
STH-500
