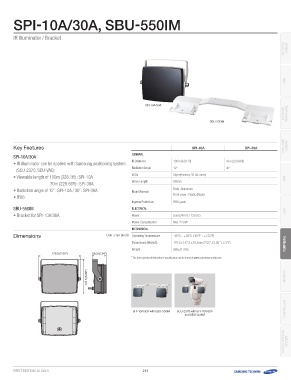

Page 213 - Catalog Samsung 2014

-10A/30A, SBU-550IM

IR Illuminator / Bracket

NETWORK
Camera

NVR

SPI-10A/30A NETWORK
PERIPHERAL
SBU-550IM

Key Features SPI-10A SPI-30A Analogue
Camera
General
SPI-10A/30A IR Distance 100m (328.1ft) 70m (229.66ft)
• IR illuminator can be applied with Samsung positioning system Radiation Angle 12° 30°
LEDs High efficiency 32 LED array
(SCU-2370, SCU-VAC) Wave Length 850nm DVR
• Viewable length of 100m (328.1ft) : SPI-10A Body : Aluminum
Main Material Front cover : Plastic (Black)
70m (229.66ft) : SPI-30A IP66 grade
• Radiation angle of 12˚ : SPI-10A / 30˚ : SPI-30A Ingress Protection
• IP66

SBU-550IM Electrical Dual (24V AC / 12V DC) LENS
• Bracket for SPI-10A/30A Power

Power Consumption Max. 27.6W

Dimensions Mechanical -40°C ~ +50°C (-40°F ~ +122°F) PERIPHERAL
Unit : mm (inch) Operating Temperature

Dimensions (WxHxD) 179.0 x 147.3 x 59.5mm (7.05" x 5.80" x 2.34")

Weight 860g (1.9 lb)

179.107(79.05") 59.59(2.5.34")

* The latest product information / specification can be found at www.samsungsecurity.com

147.3 MONITOR
147.134(75.380")
59.5

SPI-10A/30A with SBU-550IM SCU-2370 with SPI-10A/30A CONTROLLER
and SBU-550IM

Access Control
System

FIRST EDITION 12-2013 213
