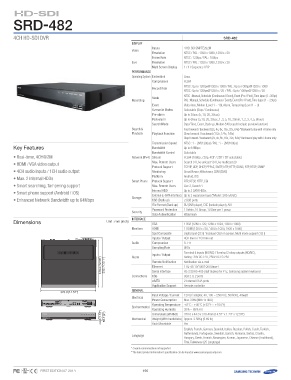

Page 190 - Catalog Samsung 2014
P. 190
-482 SRD-482
4CH HD-SDI DVR Display
Key Features Video Inputs 4 HD-SDI SMPTE292M
• Real-time, 4CH@2M Resolution NTSC / PAL : 1920 x 1080, 1280 x 720
• HDMI / VGA video output NTSC : 120fps / PAL : 100fps
• 4CH audio inputs / 1CH audio output Frame Rate NTSC / PAL : 1920 x 1080, 1280 x 720
• Max. 2 internal HDDs 1 / 4 / Sequence / PIP
• Smart searching, Tampering support Live Resolution
• Smart phone support (Android / iOS) Linux
• Enhanced Network Bandwidth up to 64Mbps Multi Screen Display H.264
Dimensions
Performance
3703.700.0(1(144..5577")")
Operating System Embedded
Compression
Record Rate NTSC : Up to 120fps@1920 x 1080 / PAL : Up to 100fps@1920 x 1080
NTSC : Up to 120fps@1280 x 720 / PAL : Up to 100fps@1280 x 720
Recording Mode NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30fps)
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
Search & Event
Playback Overwrite Modes Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level 1 ~ 3)
Pre-alarm Selectable (Stop / Continuous)
Post-alarm Up to 30sec (5, 10, 20, 30sec)
Search Mode Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Date/Time, Event, Back up, Motion (*All search include preview function)
Playback Function
Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Transmission Speed NTSC : 1 ~ 2M (120fps) / PAL : 1 ~ 2M (100fps)
Bandwidth Up to 64Mbps
Bandwidth Control Selectable
Network (IPv4) Stream H.264 (1080p, 720p, 4CIF / 2CIF / CIF selectable)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, UDP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Monitoring SmartViewer, Webviewer, SSM (CMS)
Platform Android, iOS
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 2, Search 1
Internal HDD Up to 2 SATA HDDs
Storage External (e-SATA Interface) Up to 2 expansion bays (*Model : SVS-5R/5E)
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player), AVI
Security Password Protection 1 Admin, 10 Group, 10 User per 1 group
Data Authentication Watermark
Unit : mm (inch) Interface
VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
Monitors HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Spot Composite Digital spot (2CH) *Incldued OSD on screen, Multi mode support (1CH)
Inputs / Output 4CH line in / 1CH line out
Audio Compression G.711
Sampling Rate 8KHz
319.341 (9.41 (21.2.5588"")) Alarm Inputs / Output Terminal 4 inputs (NO/NC) / Terminal 2 relay outputs (NO/NC),
332.3372(.71(31.3.11"")) Rating : 30V DC / 2A, 250V AC / 0.25A
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 (Half duplex) for PTZ, Samsung system keyboard
Connections USB USB 2.0, 2 ports
eSATA 2 External SATA ports
Application Support Remote controller
General
Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt
Power Consumption Max. 20W (With 1x HDD)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85% RH
44.440.0( (11..773"3)")
505.0.77 ((22")") Dimensions (WxHxD) 370.0 x 44.0 x 319.4mm (14.57" x 1.73" x 12.58")
Mechanical Weight (With hard disks) Approx. 2.58Kg (5.69 lb)
Rack Mountable Yes
Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish,
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia,
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)
* Coaxial communication not supported
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 190
