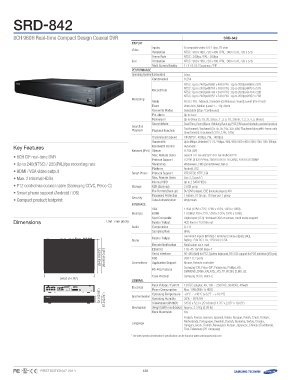

Page 188 - Catalog Samsung 2014
P. 188
SRD-842
8CH 960H Real-time Compact Design Coaxial DVR SRD-842
Display
Video Inputs 8 composite video 0.5-1 Vpp, 75 ohm
Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576
NTSC : 240fps / PAL : 200fps
Frame Rate NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576
1 / 4 / 6 / 8 / Sequence / PIP
Live Resolution
Linux
Multi Screen Display H.264
Performance
Operating System Embedded
Compression
Recording Record Rate NTSC : Up to 240fps@960 x 480 / PAL : Up to 200fps@960 x 576
Mode NTSC : Up to 240fps@704 x 480 / PAL : Up to 200fps@704 x 576
NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288
NTSC : Up to 240fps@352 x 240 / PAL : Up to 200fps@352 x 288
NTSC / PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post)
Event Video loss, Motion (Level 1 ~ 10), Alarm
Overwrite Modes Selectable (Stop / Continuous)
Pre-alarm Up to 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Search Mode Date/Time, Event (Alarm / Motion), Back up, POS (*All search include preview function)
Playback Playback Function
Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Transmission Speed CIF (NTSC : 480fps, PAL : 400fps)
Bandwidth Up to 8Mbps, Unlimited 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Key Features Bandwidth Control Automatic
• 8CH CIF real-time DVR Network (IPv4) Stream H.264 (CIF)
• Up to 240(NTSC) / 200(PAL)fps recording rate
• HDMI / VGA video output Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
• Max. 2 internal HDDs
• PTZ control via coaxial cable (Samsung CCVC, Pelco-C) Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
• Smart phone support (Android / iOS)
• Compact product footprint Monitoring Webviewer, CMS (SmartViewer, Net-I)
Platform Android, iOS
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 2, Search 1
Internal HDD Up to 2 SATA HDDs
Storage USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player), AVI
Security Password Protection 1 Admin, 10 Group, 10 User per 1 group
Data Authentication Watermark
Interface
VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
Monitors HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Dimensions Unit : mm (inch) Spot Composite Digital spot (1CH) *Incldued OSD on screen, multi mode support
Inputs / Output 4CH line in / 1CH line out
Audio Compression G.711
Sampling Rate 8KHz
Alarm Inputs / Output Terminal 8 inputs (NO/NC) / Terminal 2 relay outputs (NO),
Rating : 24V DC / 1A, 125V AC / 0.5A
Remote Notification Notification via e-mail
254.8 (10.03") 2542.584.(8 (1100..003"3)") Ethernet 1 RJ-45 10/100 Base-T
264.95 (10.43") 264.29645.1(61(10.0.44")3")
Serial Interface RS-485 (Half) for PTZ, System keyboard, RS-232 support for POS interface (VSI-pro)
USB USB 2.0, 2 ports
Connections Application Support Mouse, Remote controller
RS-485 Protocol Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
34534.05.0(1(144..776"6) ") Coax Protocol Samsung CCVC, Pelco-C
General
552.2.0 (02.(025.")05") Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt
57.570.0( (22..224"4)") Power Consumption Max. 19W (With 1x HDD)
52.0 (2.05") Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
57.0 (2.24") Operating Humidity 20% ~ 85% RH
Dimensions (WxHxD) 345.0 x 52.0 x 254.8mm (14.76" x 2.05" x 10.03")
Mechanical Weight (With hard disks) Approx. 2.31Kg (5.09 lb)
Rack Mountable Yes
Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish,
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia,
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 188
