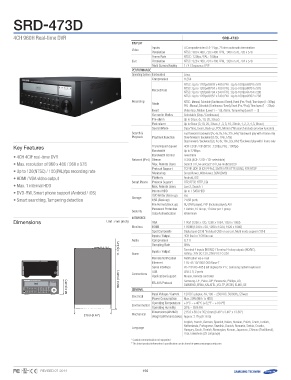

4CH 960H Real-time DVR SRD-473D
Key Features Display
• 4CH 4CIF real-time DVR
• Max. resolution of 960 x 480 / 960 x 576 Video Inputs 4 Composite video 0.5-1 Vpp, 75 ohm automatic termination
• Up to 120(NTSC) / 100(PAL)fps recording rate Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576
• HDMI / VGA video output NTSC : 120fps / PAL : 100fps
• Max. 1 internal HDD Frame Rate NTSC : 928 x 480, 704 x 480 / PAL : 928 x 576, 704 x 576
• DVD-RW, Smart phone support (Android / iOS) 1 / 4 / Sequence / PIP
• Smart searching, Tampering detection Live Resolution
Dimensions Linux
Multi Screen Display H.264
215.0 (8.46")
Performance
212515.0.0 ((88..4466")")
Operating System Embedded
Compression
Record Rate NTSC : Up to 120fps@928 x 480 / PAL : Up to 100fps@928 x 576
NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576
NTSC : Up to 120fps@704 x 240 / PAL : Up to 100fps@704 x 288
NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288
Recording Mode NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30fps)
Search & PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
Playback Event
Overwrite Modes Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level 1 ~ 3)
Pre-alarm Selectable (Stop / Continuous)
Post-alarm Up to 30sec (5, 10, 20, 30sec)
Search Mode Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Date/Time, Event, Back up, POS, Motion (*All search include preview function)
Playback Function
Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only
Transmission Speed 4CIF / 2CIF / CIF (NTSC : 120fps, PAL : 100fps)
Bandwidth Up to 32Mbps
Bandwidth Control Selectable
Network (IPv4) Stream H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, UDP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring SmartViewer, Webviewer, SSM (CMS)
Platform Android, iOS
11.1 (0.44") Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 2, Search 1
Internal HDD Up to 1 SATA HDD
Storage DVD Writer (Back up) Yes
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player), AVI
352.0 (13.86") Security Password Protection 1 Admin, 10 Group, 10 User per 1 group
Data Authentication Watermark
Unit : mm (inch) Interface
VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
Monitors HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Spot Composite Digital spot (2CH) *Incldued OSD on screen, Multi mode support (1CH)
Inputs / Output 4CH line in / 1CH line out
11.111.1( (00..4444")") Audio Compression G.711
Sampling Rate 8KHz
Alarm Inputs / Output Terminal 4 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),
Rating : 30V DC / 2A, 250V AC / 0.25A
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 (Half duplex) for PTZ, Samsung system keyboard
35325.2.00((1133..886"6)") Connections USB USB 2.0, 2 ports
Application Support Mouse, Remote controller
888.8.00( (33..4466")") RS-485 Protocol Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
General
Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 55watt
Power Consumption Max. 20W (With 1x HDD)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85% RH
Mechanical Dimensions (WxHxD) 215.0 x 88.0 x 352.0mm (8.46" x 3.46" x 13.86")
Weight (With hard disks) Approx. 3.7Kg (8.16 lb)
Language English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish,
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia,
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional),
Thai, Taiwanese (25 Language)
88.0 (3.46") * Coaxial communication not supported
* The latest product information / specification can be found at www.samsungsecurity.com
