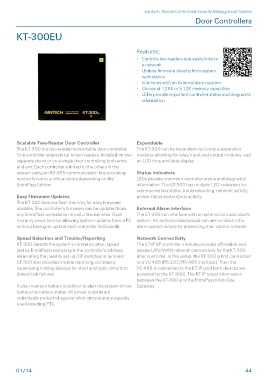

300EU Kantech Access Control and Security Management System
Door Controllers
Features:
• Controls two readers and easily links to
a network
• Update firmware directly from system
workstation
• Interfaces with an external alarm system
• Choice of 128K or 512K memory capacities
• LEDs provide important controller status and diagnostic
information
Scalable Two-Reader Door Controller Expandable
The KT-300 is a two-reader networkable door controller. The KT-300 can be expanded via Combus expansion
One controller supports up to two readers, installed on two modules allowing for relay, input and output modules, and
separate doors or on a single door controlling both entry an LCD time and date display.
and exit. Each controller is linked to the others in the
system using an RS-485 communication bus providing Status Indicators
control for up to a million doors depending on the LEDs provide important controller status and diagnostic
EntraPass Edition. information. The KT-300 has multiple LED indicators for:
communication status, troubleshooting, network activity,
Easy Firmware Updates power status and outputs activity.
The KT-300 features flash memory for easy firmware
updates. The controller’s firmware can be updated from External Alarm Interface
any EntraPass workstation in just a few minutes. Flash The KT-300 can interface with an external intrusion alarm
memory saves time by allowing system updates from a PC system. An authorized individual can arm or disarm the
without having to update each controller individually. alarm system simply by presenting their card to a reader.
Speed Selection and Trouble/Reporting Network Connectivity
KT-300 detects the system’s communication speed The KT-IP (IP controller module) provides affordable and
(set by EntraPass) and assigns the controller’s address, secure LAN/WAN network connectivity for the KT-300
eliminating the need to set up DIP switches or jumpers. door controller. In this setup, the KT-300 is first connected
KT-300 also provides trouble reporting, constantly to a VC-485 (RS-232/RS-485 interface). Then the
supervising locking devices for short and open circuits to VC-485 is connected to the KT-IP (and both devices are
detect lock failures. powered by the KT-300). The KT-IP relays information
between the KT-300 and the EntraPass Multi-Site
It also monitors battery condition to alert the system of low Gateway.
battery/no battery status. All power outputs are
individually protected against short circuits and surges by
a self-resetting PTC.
01/14 44
