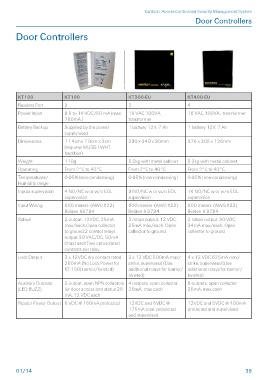

Kantech Access Control and Security Management System
Door Controllers
Door Controllers
KT100 KT100 KT300-EU KT400-EU
Readers Port 2 24
Power Input 9.5 to 14 VDC/50 mA (max 16 VAC 100VA, 16 VAC 100VA, transformer
750mA.) transformer
Battery Backup Supplied by the power 1 battery 12V, 7 Ah 1 battery 12V, 7 Ah
supply used
Dimensions 11.4cmx 7.0cm x 3cm 390 x 340 x 90mm 376 x 305 x 126mm
(requires MUSB-1WHT
backbox)
Weight 110g 5.2kg with metal cabinet 5.2kg with metal cabinet
Operating From 2°C to 40°C From 2°C to 40°C From 2°C to 40°C
Temperatures/ 0-95% (non-condensing) 0-95% (non-condensing) 0-95% (non-condensing)
Humidity range
Inputs supervision 4 NO/NC w or w/o EOL 9 NO/NC w or w/o EOL 16 NO/NC w or w/o EOL
supervision supervision supervision
Input Wiring 600 meters -(AWG #22) 600 meters -(AWG #22) 600 meters -(AWG #22)
Belden #9794 Belden # 9794 Belden # 9794
Relays 2 output, 12VDC, 25mA 2 relays output, 12 VDC, 2 relays output, 30 VDC,
max/each.Open collector 25mA max/each. Open 34mA max/each. Open
to ground;2 control relays collector to ground collector to ground
output 30 VAC/DC, 50mA
(max) eachTwo optosolated
contacts per relay
Lock Output 2 x 12VDC dry contact rated 2 x 12 VDC 500mA max/ 4 x 12 VDC 625mA max/
250mA (No Lock Power for strike, supervised (Use strike, supervised (Use
KT-100) barrier/twisted) additional relays for barrier/ additional relays for barrier/
twisted) twisted)
Auxiliary Outputs 2 output, open NPN collectors 4 outputs, open collector 8 outputs, open collector
(LED,BUZZ) for door access and status 25 25mA, max each 25mA, max each
mA, 12 VDC each
Reader Power Output 5 VDC @ 150mA protected 12VDC and 5VDC @ 12VDC and 5VDC @ 400mA
175mA total, protected protected and supervised
and supervised
01/14 39
