Page 43 - Catalog Kantech 2014
P. 43

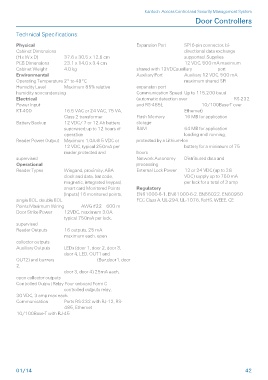

Kantech Access Control and Security Management System
Door Controllers
Technical Specifications:
Physical Expansion Port SPI 6-pin connector, bi-
Cabinet Dimensions directional data exchange
(H x W x D) 37.6 x 30.5 x 12.6 cm supported. Supplies
PCB Dimensions 23.1 x 14.0 x 3.4 cm 12 VDC, 500 mA maximum
Cabinet Weight 4.0 kg shared with 12VDCauxiliary port
Environmental Auxiliary Port Auxiliary 12 VDC, 500 mA
Operating Temperature 2° to 49°C maximum shared SPI
Humidity Level Maximum 85% relative expansion port
humidity noncondensing Communication Speed Up to 115,200 baud
Electrical (automatic detection over RS-232
Power Input and RS-485); 10/100Base-T over
KT-400 16.5 VAC or 24 VAC, 75 VA, Ethernet)
Class 2 transformer Flash Memory 16 MB for application
Battery Backup 12 VDC/ 7 or 12 Ah battery storage
supervised;up to 12 hours of RAM 64 MB for application
operation loading and running,
Reader Power Output Maximum 1.0A @ 5 VDC or protected by a Lithium-Ion
12 VDC, typical 250mA per battery for a minimum of 75
reader,protected and hours
supervised Network Autonomy Distributed data and
Operational processing
Reader Types Wiegand, proximity, ABA External Lock Power 12 or 24 VDC (up to 28
clock and data, bar code, VDC) supply up to 750 mA
magnetic, integrated keypad, per lock for a total of 3 amp
smart card Monitored Points Regulatory
(Inputs) 16 monitored points, EN61000-6-1, EN61000-6-2, EN55022, EN60950
single EOL, double EOL FCC Class A, UL-294, UL-1076, RoHS, WEEE, CE
Points Maximum Wiring AWG #22 – 600 m
Door Strike Power 12VDC, maximum 3.0A
typical 750mA per lock,
supervised
Reader Outputs 16 outputs, 25 mA
maximum each, open
collector outputs
Auxiliary Outputs LEDs (door 1, door 2, door 3,
door 4, LED, OUT1 and
OUT2) and buzzers (Buz,door1, door
2,
door 3, door 4) 25mA each,
open collector outputs
Controlled Output Relay Four onboard Form C
controlled outputs relay,
30 VDC, 3 amp max each
Communication Ports RS-232 with RJ-12, RS-
485, Ethernet
10/100Base-T with RJ-45
01/14 42
